DUCT TEMPERATURE SENSORS

TYPICAL APPLICATIONS (but not limited to):

  • HVAC duct temperature feedback for BAS control

  • Air handler unit (AHU) temperature monitoring

  • Rooftop unit (RTU) temperature sensing

  • Freeze protection in ventilation system

  • Supply air temperature monitoring

  • Return air temperature sensing

  • Mixed air temperature control

  • Heating and cooling coil temperature monitoring

DUCT EURO

OVERVIEW

The Tasseron Euro Duct Temperature Sensor provides a high quality solution for both commercial and industrial applications. The Euro housing offers weatherproof NEMA 4X/IP 66 ratings and is produced with injection-molded PC/ABS material and stainless steel AISI 316 probe.

The available measuring elements interface with most major control manufacturers. Accurate thermistors and RTDs ensure low drift and are double encapsulated to guarantee the highest reliability in the field. The installed, high quality, closed cell foam ensures sealing of the probe insert and absorption of vibration. The Hinged Snap Cover and Quick Connect wire terminals make for a tool-free installation and reduces labor costs.

The Euro Series is also available with multiple temperature transmitter ranges with 4-20mA analog output.

THTDEA04 DUCT EURO TEMP NTC 10K-2 4" THTDEA06 DUCT EURO TEMP NTC 10K-2 6" THTDEA08 DUCT EURO TEMP NTC 10K-2 8" THTDEA12 DUCT EURO TEMP NTC 10K-2 12" THTDEA18 DUCT EURO TEMP NTC 10K-2 18" THTDEB04 DUCT EURO TEMP NTC 10K-3 4" THTDEB06 DUCT EURO TEMP NTC 10K-3 6" THTDEB08 DUCT EURO TEMP NTC 10K-3 8" THTDEB12 DUCT EURO TEMP NTC 10K-3 12" THTDEB18 DUCT EURO TEMP NTC 10K-3 18" THTDEJ04 DUCT EURO TEMP NTC 10K-3 [11K] SHUNT 4" THTDEJ06 DUCT EURO TEMP NTC 10K-3 [11K] SHUNT 6" THTDEJ08 DUCT EURO TEMP NTC 10K-3 [11K] SHUNT 8" THTDEJ12 DUCT EURO TEMP NTC 10K-3 [11K] SHUNT 12" THTDEJ18 DUCT EURO TEMP NTC 10K-3 [11K] SHUNT 18" THTDEC04 DUCT EURO TEMP NTC 20K 4" THTDEC06 DUCT EURO TEMP NTC 20K 6" THTDEC08 DUCT EURO TEMP NTC 20K 8" THTDEC12 DUCT EURO TEMP NTC 20K 12" THTDEC18 DUCT EURO TEMP NTC 20K 18" THTDED04 DUCT EURO TEMP NTC 3K 4" THTDED06 DUCT EURO TEMP NTC 3K 6" THTDED08 DUCT EURO TEMP NTC 3K 8" THTDED12 DUCT EURO TEMP NTC 3K 12" THTDED18 DUCT EURO TEMP NTC 3K 18" THTDEG04 DUCT EURO TEMP NTC 10K-4 4" THTDEG06 DUCT EURO TEMP NTC 10K-4 6" THTDEG08 DUCT EURO TEMP NTC 10K-4 8" THTDEG12 DUCT EURO TEMP NTC 10K-4 12" THTDEG18 DUCT EURO TEMP NTC 10K-4 18" THTDEH04 DUCT EURO TEMP Pt100 4" THTDEH06 DUCT EURO TEMP Pt100 6" THTDEH08 DUCT EURO TEMP Pt100 8" THTDEH12 DUCT EURO TEMP Pt100 12" THTDEH18 DUCT EURO TEMP Pt100 18" THTDEE04 DUCT EURO TEMP Pt1000 4" THTDEE06 DUCT EURO TEMP Pt1000 6" THTDEE08 DUCT EURO TEMP Pt1000 8" THTDEE12 DUCT EURO TEMP Pt1000 12" THTDEE18 DUCT EURO TEMP Pt1000 18" THTDEF04 DUCT EURO TEMP Ni1000-891 4" THTDEF06 DUCT EURO TEMP Ni1000-891 6" THTDEF08 DUCT EURO TEMP Ni1000-891 8" THTDEF12 DUCT EURO TEMP Ni1000-891 12" THTDEF18 DUCT EURO TEMP Ni1000-891 18" THTDEK04 DUCT EURO TEMP Ni1000-TC5 4" THTDEK06 DUCT EURO TEMP Ni1000-TC5 6" THTDEK08 DUCT EURO TEMP Ni1000-TC5 8" THTDEK12 DUCT EURO TEMP Ni1000-TC5 12" THTDEK18 DUCT EURO TEMP Ni1000-TC5 18" THTDEX04 DUCT EURO TEMP TR -40..70C 4-20mA 4" THTDEX06 DUCT EURO TEMP TR -40..70C 4-20mA 6" THTDEX08 DUCT EURO TEMP TR -40..70C 4-20mA 8" THTDEX12 DUCT EURO TEMP TR -40..70C 4-20mA 12" THTDEX18 DUCT EURO TEMP TR -40..70C 4-20mA 18" THTDEW04 DUCT EURO TEMP TR 0..50C 4-20mA 4" THTDEW06 DUCT EURO TEMP TR 0..50C 4-20mA 6" THTDEW08 DUCT EURO TEMP TR 0..50C 4-20mA 8" THTDEW12 DUCT EURO TEMP TR 0..50C 4-20mA 12" THTDEW18 DUCT EURO TEMP TR 0..50C 4-20mA 18" THTDET04 DUCT EURO TEMP TR 32..212 F / 0..100C 4-20mA 4" THTDET06 DUCT EURO TEMP TR 32..212 F / 0..100C 4-20mA 6" THTDET08 DUCT EURO TEMP TR 32..212 F / 0..100C 4-20mA 8" THTDET12 DUCT EURO TEMP TR 32..212 F / 0..100C 4-20mA 12" THTDET18 DUCT EURO TEMP TR 32..212 F / 0..100C 4-20mA 18" THTDEU04 DUCT EURO TEMP TR 20..120F 4-20mA 4" THTDEU06 DUCT EURO TEMP TR 20..120F 4-20mA 6" THTDEU08 DUCT EURO TEMP TR 20..120F 4-20mA 8" THTDEU12 DUCT EURO TEMP TR 20..120F 4-20mA 12" THTDEU18 DUCT EURO TEMP TR 20..120F 4-20mA 18" THTDEV04 DUCT EURO TEMP TR 0..100F 4-20mA 4" THTDEV06 DUCT EURO TEMP TR 0..100F 4-20mA 6" THTDEV08 DUCT EURO TEMP TR 0..100F 4-20mA 8" THTDEV12 DUCT EURO TEMP TR 0..100F 4-20mA 12" THTDEV18 DUCT EURO TEMP TR 0..100F 4-20mA 18"

FEATURES

  • Durable injection-molded NEMA 4X / IP66 watertight enclosure

  • Hinged removable snap cover

  • Available in 4” / 6” / 8” / 12” / 18” probe lengths

  • AISI 316 stainless steel temperature probe

  • 1/2” NPT conduit adapter and cable gland strain relief included

  • Quick Connect wire terminals

  • NTC thermistors, RTD elements or 4-20mA transmitters available

  • Compatible with most control systems

  • CE & RoHS compliant

  • 5 year limited warranty

BUY NOW
request a quote
DATASHEET

instructions:

Duct euro temp installation instructions

DUCT G-BOX

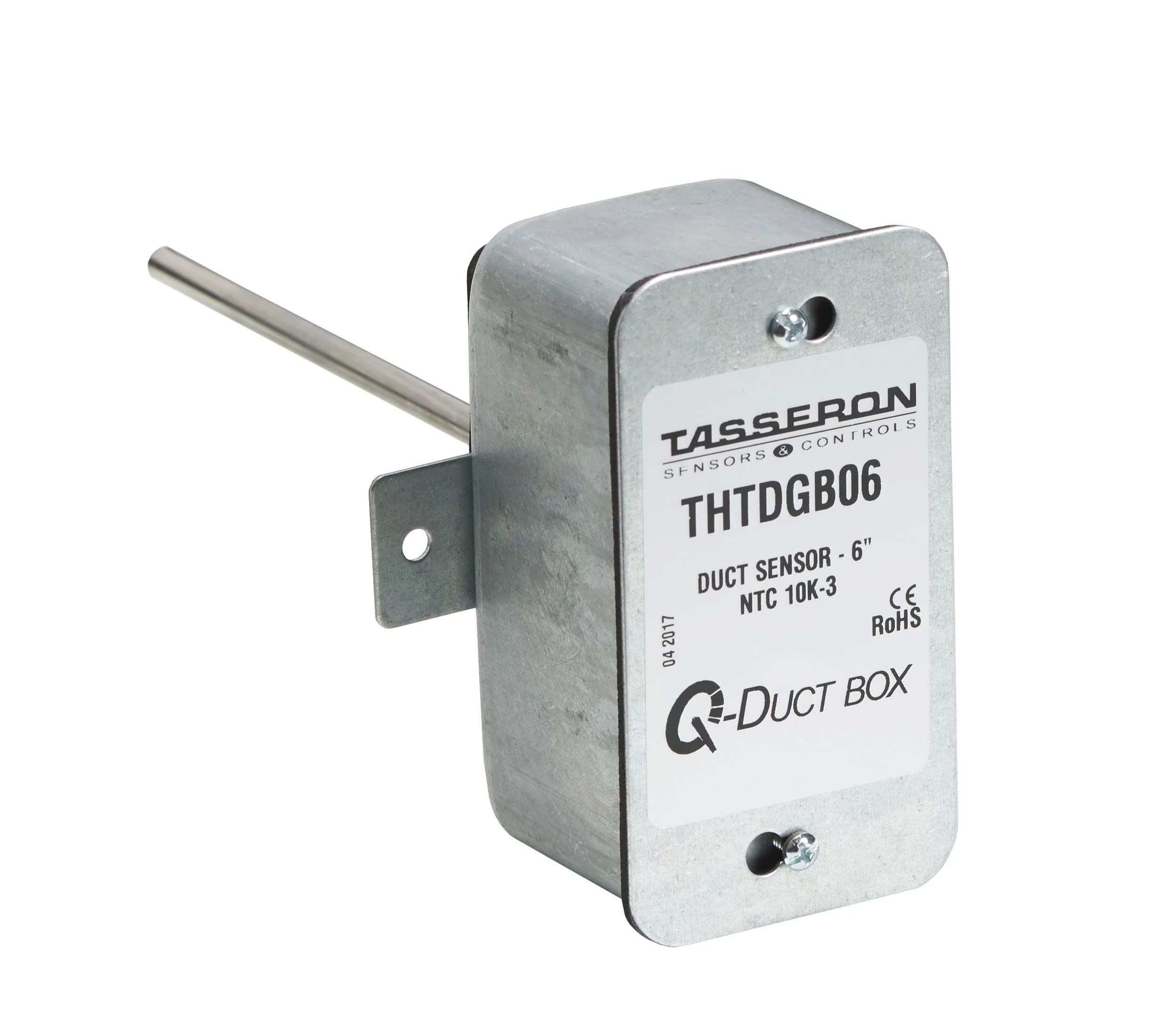

duct box cropped.jpg

OVERVIEW

Galvanized steel enclosure and stainless steel AISI 316L probe for both commercial and industrial applications.

Available measuring elements interface with most major control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability.

The dual insulated, high quality, closed cell foam ensures sealing of the probe insert and absorption of vibration. The dual-slotted, Quick Attach foamed cover and Quick Connect terminals make install easy and reduce labor costs.

THTDGA04 DUCT GALV BOX NTC 10K-2 4" THTDGA06 DUCT GALV BOX NTC 10K-2 6" THTDGA08 DUCT GALV BOX NTC 10K-2 8" THTDGA12 DUCT GALV BOX NTC 10K-2 12" THTDGA18 DUCT GALV BOX NTC 10K-2 18" THTDGB04 DUCT GALV BOX NTC 10K-3 4" THTDGB06 DUCT GALV BOX NTC 10K-3 6" THTDGB08 DUCT GALV BOX NTC 10K-3 8" THTDGB12 DUCT GALV BOX NTC 10K-3 12" THTDGB18 DUCT GALV BOX NTC 10K-3 18" THTDGJ04 DUCT GALV BOX NTC 10K-3 [11K] SHUNT 4" THTDGJ06 DUCT GALV BOX NTC 10K-3 [11K] SHUNT 6" THTDGJ08 DUCT GALV BOX NTC 10K-3 [11K] SHUNT 8" THTDGJ12 DUCT GALV BOX NTC 10K-3 [11K] SHUNT 12" THTDGJ18 DUCT GALV BOX NTC 10K-3 [11K] SHUNT 18" THTDGC04 DUCT GALV BOX NTC 20K 4" THTDGC06 DUCT GALV BOX NTC 20K 6" THTDGC08 DUCT GALV BOX NTC 20K 8" THTDGC12 DUCT GALV BOX NTC 20K 12" THTDGC18 DUCT GALV BOX NTC 20K 18" THTDGD04 DUCT GALV BOX NTC 3K 4" THTDGD06 DUCT GALV BOX NTC 3K 6" THTDGD08 DUCT GALV BOX NTC 3K 8" THTDGD12 DUCT GALV BOX NTC 3K 12" THTDGD18 DUCT GALV BOX NTC 3K 18" THTDGG04 DUCT GALV BOX NTC 10K-4 4" THTDGG06 DUCT GALV BOX NTC 10K-4 6" THTDGG08 DUCT GALV BOX NTC 10K-4 8" THTDGG12 DUCT GALV BOX NTC 10K-4 12" THTDGG18 DUCT GALV BOX NTC 10K-4 18" THTDGH04 DUCT GALV BOX Pt100 4" THTDGH06 DUCT GALV BOX Pt100 6" THTDGH08 DUCT GALV BOX Pt100 8" THTDGH12 DUCT GALV BOX Pt100 12" THTDGH18 DUCT GALV BOX Pt100 18" THTDGE04 DUCT GALV BOX Pt1000 4" THTDGE06 DUCT GALV BOX Pt1000 6" THTDGE08 DUCT GALV BOX Pt1000 8" THTDGE12 DUCT GALV BOX Pt1000 12" THTDGE18 DUCT GALV BOX Pt1000 18" THTDGF04 DUCT GALV BOX Ni1000-891 4" THTDGF06 DUCT GALV BOX Ni1000-891 6" THTDGF08 DUCT GALV BOX Ni1000-891 8" THTDGF12 DUCT GALV BOX Ni1000-891 12" THTDGF18 DUCT GALV BOX Ni1000-891 18" THTDGK04 DUCT GALV BOX Ni1000-TC5 4" THTDGK06 DUCT GALV BOX Ni1000-TC5 6" THTDGK08 DUCT GALV BOX Ni1000-TC5 8" THTDGK12 DUCT GALV BOX Ni1000-TC5 12" THTDGK18 DUCT GALV BOX Ni1000-TC5 18"

FEATURES

  • Galvanized steel enclosure with Quick Attach Cover

  • Available in 4” / 6” / 8” / 12” / 18” lengths

  • AISI 316L stainless steel temperature probe

  • Quick Connect wire terminals eliminate wire nuts

  • 1/2” knockout compatible optional watertight grommet

  • Full anti-vibration pad on front of box

  • NTC thermistors or RTD elements available

  • Compatible with most Control Systems

  • CE & RoHS compliant

  • 5 Year Limited Warranty

  • Made in USA

BUY NOW
request a quote
Datasheet

instructions:

Duct / immersion installation instructions

duct mini

Q-Duct Mini shown with conduit adapter accessory - sold in packs of 10

Q-Duct Mini shown with conduit adapter accessory - sold in packs of 10 or by part number designation

OVERVIEW

Injection-molded plastic enclosure and stainless steel AISI 316L probe provides a cost-effective solution for both commercial and industrial applications.

Available measuring elements interface with all major control manufacturers. Accurate passive thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability.

The installed closed cell foam ensures sealing of the probe insert and absorption of vibration. The Quick Snap Cover and Quick Connect wire terminals makes install easy and reduces labor costs.

THTDPA04 DUCT MINI NTC 10K-2 4" THTDPA06 DUCT MINI NTC 10K-2 6" THTDPA08 DUCT MINI NTC 10K-2 8" THTDPA12 DUCT MINI NTC 10K-2 12" THTDPA18 DUCT MINI NTC 10K-2 18" THTDPB04 DUCT MINI NTC 10K-3 4" THTDPB06 DUCT MINI NTC 10K-3 6" THTDPB08 DUCT MINI NTC 10K-3 8" THTDPB12 DUCT MINI NTC 10K-3 12" THTDPB18 DUCT MINI NTC 10K-3 18" THTDPJ04 DUCT MINI NTC 10K-3 [11K] SHUNT 4" THTDPJ06 DUCT MINI NTC 10K-3 [11K] SHUNT 6" THTDPJ08 DUCT MINI NTC 10K-3 [11K] SHUNT 8" THTDPJ12 DUCT MINI NTC 10K-3 [11K] SHUNT 12" THTDPJ18 DUCT MINI NTC 10K-3 [11K] SHUNT 18" THTDPC04 DUCT MINI NTC 20K 4" THTDPC06 DUCT MINI NTC 20K 6" THTDPC08 DUCT MINI NTC 20K 8" THTDPC12 DUCT MINI NTC 20K 12" THTDPC18 DUCT MINI NTC 20K 18" THTDPD04 DUCT MINI NTC 3K 4" THTDPD06 DUCT MINI NTC 3K 6" THTDPD08 DUCT MINI NTC 3K 8" THTDPD12 DUCT MINI NTC 3K 12" THTDPD18 DUCT MINI NTC 3K 18" THTDPG04 DUCT MINI NTC 10K-4 4" THTDPG06 DUCT MINI NTC 10K-4 6" THTDPG08 DUCT MINI NTC 10K-4 8" THTDPG12 DUCT MINI NTC 10K-4 12" THTDPG18 DUCT MINI NTC 10K-4 18" THTDPH04 DUCT MINI Pt100 4" THTDPH06 DUCT MINI Pt100 6" THTDPH08 DUCT MINI Pt100 8" THTDPH12 DUCT MINI Pt100 12" THTDPH18 DUCT MINI Pt100 18" THTDPE04 DUCT MINI Pt1000 4" THTDPE06 DUCT MINI Pt1000 6" THTDPE08 DUCT MINI Pt1000 8" THTDPE12 DUCT MINI Pt1000 12" THTDPE18 DUCT MINI Pt1000 18" THTDPF04 DUCT MINI Ni1000-891 4" THTDPF06 DUCT MINI Ni1000-891 6" THTDPF08 DUCT MINI Ni1000-891 8" THTDPF12 DUCT MINI Ni1000-891 12" THTDPF18 DUCT MINI Ni1000-891 18" THTDPK04 DUCT MINI Ni1000-TC5 4" THTDPK06 DUCT MINI Ni1000-TC5 6" THTDPK08 DUCT MINI Ni1000-TC5 8" THTDPK12 DUCT MINI Ni1000-TC5 12" THTDPK18 DUCT MINI Ni1000-TC5 18" THTDCA04 DUCT MINI W CONDUIT NTC 10K-2 4" THTDCA06 DUCT MINI W CONDUIT NTC 10K-2 6" THTDCA08 DUCT MINI W CONDUIT NTC 10K-2 8" THTDCA12 DUCT MINI W CONDUIT NTC 10K-2 12" THTDCA18 DUCT MINI W CONDUIT NTC 10K-2 18" THTDCB04 DUCT MINI W CONDUIT NTC 10K-3 4" THTDCB06 DUCT MINI W CONDUIT NTC 10K-3 6" THTDCB08 DUCT MINI W CONDUIT NTC 10K-3 8" THTDCB12 DUCT MINI W CONDUIT NTC 10K-3 12" THTDCB18 DUCT MINI W CONDUIT NTC 10K-3 18" THTDCJ04 DUCT MINI W CONDUIT NTC 10K-3 [11K] SHUNT 4" THTDCJ06 DUCT MINI W CONDUIT NTC 10K-3 [11K] SHUNT 6" THTDCJ08 DUCT MINI W CONDUIT NTC 10K-3 [11K] SHUNT 8" THTDCJ12 DUCT MINI W CONDUIT NTC 10K-3 [11K] SHUNT 12" THTDCJ18 DUCT MINI W CONDUIT NTC 10K-3 [11K] SHUNT 18" THTDCC04 DUCT MINI W CONDUIT NTC 20K 4" THTDCC06 DUCT MINI W CONDUIT NTC 20K 6" THTDCC08 DUCT MINI W CONDUIT NTC 20K 8" THTDCC12 DUCT MINI W CONDUIT NTC 20K 12" THTDCC18 DUCT MINI W CONDUIT NTC 20K 18" THTDCD04 DUCT MINI W CONDUIT NTC 3K 4" THTDCD06 DUCT MINI W CONDUIT NTC 3K 6" THTDCD08 DUCT MINI W CONDUIT NTC 3K 8" THTDCD12 DUCT MINI W CONDUIT NTC 3K 12" THTDCD18 DUCT MINI W CONDUIT NTC 3K 18" THTDCG04 DUCT MINI W CONDUIT NTC 10K-4 4" THTDCG06 DUCT MINI W CONDUIT NTC 10K-4 6" THTDCG08 DUCT MINI W CONDUIT NTC 10K-4 8" THTDCG12 DUCT MINI W CONDUIT NTC 10K-4 12" THTDCG18 DUCT MINI W CONDUIT NTC 10K-4 18" THTDCH04 DUCT MINI W CONDUIT Pt100 4" THTDCH06 DUCT MINI W CONDUIT Pt100 6" THTDCH08 DUCT MINI W CONDUIT Pt100 8" THTDCH12 DUCT MINI W CONDUIT Pt100 12" THTDCH18 DUCT MINI W CONDUIT Pt100 18" THTDCE04 DUCT MINI W CONDUIT Pt1000 4" THTDCE06 DUCT MINI W CONDUIT Pt1000 6" THTDCE08 DUCT MINI W CONDUIT Pt1000 8" THTDCE12 DUCT MINI W CONDUIT Pt1000 12" THTDCE18 DUCT MINI W CONDUIT Pt1000 18" THTDCF04 DUCT MINI W CONDUIT Ni1000-891 4" THTDCF06 DUCT MINI W CONDUIT Ni1000-891 6" THTDCF08 DUCT MINI W CONDUIT Ni1000-891 8" THTDCF12 DUCT MINI W CONDUIT Ni1000-891 12" THTDCF18 DUCT MINI W CONDUIT Ni1000-891 18" THTDCK04 DUCT MINI W CONDUIT Ni1000-TC5 4" THTDCK06 DUCT MINI W CONDUIT Ni1000-TC5 6" THTDCK08 DUCT MINI W CONDUIT Ni1000-TC5 8" THTDCK12 DUCT MINI W CONDUIT Ni1000-TC5 12" THTDCK18 DUCT MINI W CONDUIT Ni1000-TC5 18"

FEATURES

  • Durable injection-molded enclosure with Quick Snap Cover

  • Available in 4” / 6” / 8” / 12” / 18” lengths

  • AISI 316L stainless steel temperature probe

  • Small lightweight design

  • Quick Connect wire terminals eliminate wire nuts

  • Installed anti-vibration pad on flange

  • NTC thermistors or RTD elements available

  • Compatible with most Control Systems

  • Optional 1/2” NPT conduit adapter

  • CE & RoHS compliant

  • 5 Year Limited Warranty

  • Made in USA

BUY NOW
request a quote
datasheet

instructions:

Duct / immersion installation instructions

MINI VAV

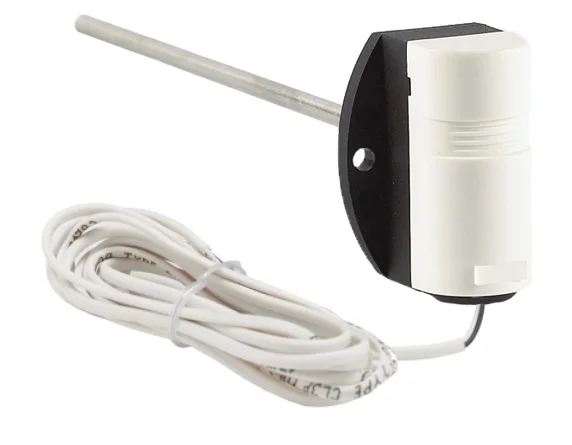

Q-DUCT MINI VAV.jpg

OVERVIEW

High quality universal Duct VAV Temperature Senosr with injection-molded plastic enclosure and stainless steel AISI 316L probe provides a cost-effective solution for both commercial and industrial applications.

Available measuring elements interface with all major control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability.

The installed, high quality, closed cell foam ensures sealing of the probe insert and absorption of vibration. The Quick Snap Cover and Quick Connect wire terminals makes install easy and reduces labor costs..

2', 6' 9' or 12' plenum rated cable included.

THTVPA42 DUCT MINI VAV 10K-2 4" PROBE 2' CABLE THTVPA46 DUCT MINI VAV 10K-2 4" PROBE 6' CABLE THTVPA49 DUCT MINI VAV 10K-2 4" PROBE 9' CABLE THTVPA4D DUCT MINI VAV 10K-2 4" PROBE 12' CABLE THTVPA62 DUCT MINI VAV 10K-2 6" PROBE 2' CABLE THTVPA66 DUCT MINI VAV 10K-2 6" PROBE 6' CABLE THTVPA69 DUCT MINI VAV 10K-2 6" PROBE 9' CABLE THTVPA6D DUCT MINI VAV 10K-2 6" PROBE 12' CABLE THTVPB42 DUCT MINI VAV 10K-3 4" PROBE 2'CABLE THTVPB46 DUCT MINI VAV 10K-3 4" PROBE 6' CABLE THTVPB49 DUCT MINI VAV 10K-3 4" PROBE 9' CABLE THTVPB4D DUCT MINI VAV 10K-3 4" PROBE 12' CABLE THTVPB62 DUCT MINI VAV 10K-3 6" PROBE 2' CABLE THTVPB66 DUCT MINI VAV 10K-3 6" PROBE 6' CABLE THTVPB69 DUCT MINI VAV 10K-3 6" PROBE 9' CABLE THTVPB6D DUCT MINI VAV 10K-3 6" PROBE 12' CABLE THTVPJ42 DUCT MINI VAV 10K-3 [11K] SHUNT 4" PROBE 2' CABLE THTVPJ46 DUCT MINI VAV 10K-3 [11K] SHUNT 4" PROBE 6' CABLE THTVPJ49 DUCT MINI VAV 10K-3 [11K] SHUNT 4" PROBE 9' CABLE THTVPJ4D DUCT MINI VAV 10K-3 [11K] SHUNT 4" PROBE 12' CABLE THTVPJ62 DUCT MINI VAV 10K-3 [11K] SHUNT 6" PROBE 2' CABLE THTVPJ66 DUCT MINI VAV 10K-3 [11K] SHUNT 6" PROBE 6' CABLE THTVPJ69 DUCT MINI VAV 10K-3 [11K] SHUNT 6" PROBE 9' CABLE THTVPJ6D DUCT MINI VAV 10K-3 [11K] SHUNT 6" PROBE 12' CABLE THTVPC42 DUCT MINI VAV 20K 4" PROBE 2' CABLE THTVPC46 DUCT MINI VAV 20K 4" PROBE 6' CABLE THTVPC49 DUCT MINI VAV 20K 4" PROBE 9' CABLE THTVPC4D DUCT MINI VAV 20K 4" PROBE 12' CABLE THTVPC62 DUCT MINI VAV 20K 6" PROBE 2' CABLE THTVPC66 DUCT MINI VAV 20K 6" PROBE 6' CABLE THTVPC69 DUCT MINI VAV 20K 6" PROBE 9' CABLE THTVPC6D DUCT MINI VAV 20K 6" PROBE 12' CABLE THTVPD42 DUCT MINI VAV 3K 4" PROBE 2' CABLE THTVPD46 DUCT MINI VAV 3K 4" PROBE 6' CABLE THTVPD49 DUCT MINI VAV 3K 4" PROBE 9' CABLE THTVPD4D DUCT MINI VAV 3K 4" PROBE 12' CABLE THTVPD62 DUCT MINI VAV 3K 6" PROBE 2' CABLE THTVPD66 DUCT MINI VAV 3K 6" PROBE 6' CABLE THTVPD69 DUCT MINI VAV 3K 6" PROBE 9' CABLE THTVPD6D DUCT MINI VAV 3K 6" PROBE 12' CABLE THTVPG42 DUCT MINI VAV 10K-4 4" PROBE 2' CABLE THTVPG46 DUCT MINI VAV 10K-4 4" PROBE 6' CABLE THTVPG49 DUCT MINI VAV 10K-4 4" PROBE 9' CABLE THTVPG4D DUCT MINI VAV 10K-4 4" PROBE 12' CABLE THTVPG62 DUCT MINI VAV 10K-4 6" PROBE 2' CABLE THTVPG66 DUCT MINI VAV 10K-4 6" PROBE 6' CABLE THTVPG69 DUCT MINI VAV 10K-4 6" PROBE 9' CABLE THTVPG6D DUCT MINI VAV 10K-4 6" PROBE 12' CABLE THTVPH42 DUCT MINI VAV Pt100 4" PROBE 2' CABLE THTVPH46 DUCT MINI VAV Pt100 4" PROBE 6' CABLE THTVPH49 DUCT MINI VAV Pt100 4" PROBE 9' CABLE THTVPH4D DUCT MINI VAV Pt100 4" PROBE 12' CABLE THTVPH62 DUCT MINI VAV Pt100 6" PROBE 2' CABLE THTVPH66 DUCT MINI VAV Pt100 6" PROBE 6' CABLE THTVPH69 DUCT MINI VAV Pt100 6" PROBE 9' CABLE THTVPH6D DUCT MINI VAV Pt100 6" PROBE 12' CABLE THTVPE42 DUCT MINI VAV Pt1000 4" PROBE 2' CABLE THTVPE46 DUCT MINI VAV Pt1000 4" PROBE 6' CABLE THTVPE49 DUCT MINI VAV Pt1000 4" PROBE 9' CABLE THTVPE4D DUCT MINI VAV Pt1000 4" PROBE 12' CABLE THTVPE62 DUCT MINI VAV Pt1000 6" PROBE 2' CABLE THTVPE66 DUCT MINI VAV Pt1000 6" PROBE 6' CABLE THTVPE69 DUCT MINI VAV Pt1000 6" PROBE 9' CABLE THTVPE6D DUCT MINI VAV Pt1000 6" PROBE 12' CABLE THTVPF42 DUCT MINI VAV Ni1000-891 4" PROBE 2' CABLE THTVPF46 DUCT MINI VAV Ni1000-891 4" PROBE 6' CABLE THTVPF49 DUCT MINI VAV Ni1000-891 4" PROBE 9' CABLE THTVPF4D DUCT MINI VAV Ni1000-891 4" PROBE 12' CABLE THTVPF62 DUCT MINI VAV Ni1000-891 6" PROBE 2' CABLE THTVPF66 DUCT MINI VAV Ni1000-891 6" PROBE 6' CABLE THTVPF69 DUCT MINI VAV Ni1000-891 6" PROBE 9' CABLE THTVPF6D DUCT MINI VAV Ni1000-891 6" PROBE 12' CABLE THTVPK42 DUCT MINI VAV Ni1000-TC5 4" PROBE 2' CABLE THTVPK46 DUCT MINI VAV Ni1000-TC5 4" PROBE 6' CABLE THTVPK49 DUCT MINI VAV Ni1000-TC5 4" PROBE 9' CABLE THTVPK4D DUCT MINI VAV Ni1000-TC5 4" PROBE 12' CABLE THTVPK62 DUCT MINI VAV Ni1000-TC5 6" PROBE 2' CABLE THTVPK66 DUCT MINI VAV Ni1000-TC5 6" PROBE 6' CABLE THTVPK69 DUCT MINI VAV Ni1000-TC5 6" PROBE 9' CABLE THTVPK6D DUCT MINI VAV Ni1000-TC5 6" PROBE 12' CABLE THTVCA42 DUCT MINI VAV 10K-2 4" PROBE 2' CABLE CONDUIT ADPT THTVCA46 DUCT MINI VAV 10K-2 4" PROBE 6' CABLE CONDUIT ADPT THTVCA49 DUCT MINI VAV 10K-2 4" PROBE 9' CABLE CONDUIT ADPT THTVCA4D DUCT MINI VAV 10K-2 4" PROBE 12' CABLE CONDUIT ADPT THTVCA62 DUCT MINI VAV 10K-2 6" PROBE 2' CABLE CONDUIT ADPT THTVCA66 DUCT MINI VAV 10K-2 6" PROBE 6' CABLE CONDUIT ADPT THTVCA69 DUCT MINI VAV 10K-2 6" PROBE 9' CABLE CONDUIT ADPT THTVCA6D DUCT MINI VAV 10K-2 6" PROBE 12' CABLE CONDUIT ADPT THTVCB42 DUCT MINI VAV 10K-3 4" PROBE 2'CABLE CONDUIT ADPT THTVCB46 DUCT MINI VAV 10K-3 4" PROBE 6' CABLE CONDUIT ADPT THTVCB49 DUCT MINI VAV 10K-3 4" PROBE 9' CABLE CONDUIT ADPT THTVCB4D DUCT MINI VAV 10K-3 4" PROBE 12' CABLE CONDUIT ADPT THTVCB62 DUCT MINI VAV 10K-3 6" PROBE 2' CABLE CONDUIT ADPT THTVCB66 DUCT MINI VAV 10K-3 6" PROBE 6' CABLE CONDUIT ADPT THTVCB69 DUCT MINI VAV 10K-3 6" PROBE 9' CABLE CONDUIT ADPT THTVCB6D DUCT MINI VAV 10K-3 6" PROBE 12' CABLE CONDUIT ADPT THTVCJ42 DUCT MINI VAV 10K-3 [11K] SHUNT 4" PROBE 2' CABLE CONDUIT ADPT THTVCJ46 DUCT MINI VAV 10K-3 [11K] SHUNT 4" PROBE 6' CABLE CONDUIT ADPT THTVCJ49 DUCT MINI VAV 10K-3 [11K] SHUNT 4" PROBE 9' CABLE CONDUIT ADPT THTVCJ4D DUCT MINI VAV 10K-3 [11K] SHUNT 4" PROBE 12' CABLE CONDUIT ADPT THTVCJ62 DUCT MINI VAV 10K-3 [11K] SHUNT 6" PROBE 2' CABLE CONDUIT ADPT THTVCJ66 DUCT MINI VAV 10K-3 [11K] SHUNT 6" PROBE 6' CABLE CONDUIT ADPT THTVCJ69 DUCT MINI VAV 10K-3 [11K] SHUNT 6" PROBE 9' CABLE CONDUIT ADPT THTVCJ6D DUCT MINI VAV 10K-3 [11K] SHUNT 6" PROBE 12' CABLE CONDUIT ADPT THTVCC42 DUCT MINI VAV 20K 4" PROBE 2' CABLE CONDUIT ADPT THTVCC46 DUCT MINI VAV 20K 4" PROBE 6' CABLE CONDUIT ADPT THTVCC49 DUCT MINI VAV 20K 4" PROBE 9' CABLE CONDUIT ADPT THTVCC4D DUCT MINI VAV 20K 4" PROBE 12' CABLE CONDUIT ADPT THTVCC62 DUCT MINI VAV 20K 6" PROBE 2' CABLE CONDUIT ADPT THTVCC66 DUCT MINI VAV 20K 6" PROBE 6' CABLE CONDUIT ADPT THTVCC69 DUCT MINI VAV 20K 6" PROBE 9' CABLE CONDUIT ADPT THTVCC6D DUCT MINI VAV 20K 6" PROBE 12' CABLE CONDUIT ADPT THTVCD42 DUCT MINI VAV 3K 4" PROBE 2' CABLE CONDUIT ADPT THTVCD46 DUCT MINI VAV 3K 4" PROBE 6' CABLE CONDUIT ADPT THTVCD49 DUCT MINI VAV 3K 4" PROBE 9' CABLE CONDUIT ADPT THTVCD4D DUCT MINI VAV 3K 4" PROBE 12' CABLE CONDUIT ADPT THTVCD62 DUCT MINI VAV 3K 6" PROBE 2' CABLE CONDUIT ADPT THTVCD66 DUCT MINI VAV 3K 6" PROBE 6' CABLE CONDUIT ADPT THTVCD69 DUCT MINI VAV 3K 6" PROBE 9' CABLE CONDUIT ADPT THTVCD6D DUCT MINI VAV 3K 6" PROBE 12' CABLE CONDUIT ADPT THTVCG42 DUCT MINI VAV 10K-4 4" PROBE 2' CABLE CONDUIT ADPT THTVCG46 DUCT MINI VAV 10K-4 4" PROBE 6' CABLE CONDUIT ADPT THTVCG49 DUCT MINI VAV 10K-4 4" PROBE 9' CABLE CONDUIT ADPT THTVCG4D DUCT MINI VAV 10K-4 4" PROBE 12' CABLE CONDUIT ADPT THTVCG62 DUCT MINI VAV 10K-4 6" PROBE 2' CABLE CONDUIT ADPT THTVCG66 DUCT MINI VAV 10K-4 6" PROBE 6' CABLE CONDUIT ADPT THTVCG69 DUCT MINI VAV 10K-4 6" PROBE 9' CABLE CONDUIT ADPT THTVCG6D DUCT MINI VAV 10K-4 6" PROBE 12' CABLE CONDUIT ADPT THTVCH42 DUCT MINI VAV Pt100 4" PROBE 2' CABLE CONDUIT ADPT THTVCH46 DUCT MINI VAV Pt100 4" PROBE 6' CABLE CONDUIT ADPT THTVCH49 DUCT MINI VAV Pt100 4" PROBE 9' CABLE CONDUIT ADPT THTVCH4D DUCT MINI VAV Pt100 4" PROBE 12' CABLE CONDUIT ADPT THTVCH62 DUCT MINI VAV Pt100 6" PROBE 2' CABLE CONDUIT ADPT THTVCH66 DUCT MINI VAV Pt100 6" PROBE 6' CABLE CONDUIT ADPT THTVCH69 DUCT MINI VAV Pt100 6" PROBE 9' CABLE CONDUIT ADPT THTVCH6D DUCT MINI VAV Pt100 6" PROBE 12' CABLE CONDUIT ADPT THTVCE42 DUCT MINI VAV Pt1000 4" PROBE 2' CABLE CONDUIT ADPT THTVCE46 DUCT MINI VAV Pt1000 4" PROBE 6' CABLE CONDUIT ADPT THTVCE49 DUCT MINI VAV Pt1000 4" PROBE 9' CABLE CONDUIT ADPT THTVCE4D DUCT MINI VAV Pt1000 4" PROBE 12' CABLE CONDUIT ADPT THTVCE62 DUCT MINI VAV Pt1000 6" PROBE 2' CABLE CONDUIT ADPT THTVCE66 DUCT MINI VAV Pt1000 6" PROBE 6' CABLE CONDUIT ADPT THTVCE69 DUCT MINI VAV Pt1000 6" PROBE 9' CABLE CONDUIT ADPT THTVCE6D DUCT MINI VAV Pt1000 6" PROBE 12' CABLE CONDUIT ADPT THTVCF42 DUCT MINI VAV Ni1000-891 4" PROBE 2' CABLE CONDUIT ADPT THTVCF46 DUCT MINI VAV Ni1000-891 4" PROBE 6' CABLE CONDUIT ADPT THTVCF49 DUCT MINI VAV Ni1000-891 4" PROBE 9' CABLE CONDUIT ADPT THTVCF4D DUCT MINI VAV Ni1000-891 4" PROBE 12' CABLE CONDUIT ADPT THTVCF62 DUCT MINI VAV Ni1000-891 6" PROBE 2' CABLE CONDUIT ADPT THTVCF66 DUCT MINI VAV Ni1000-891 6" PROBE 6' CABLE CONDUIT ADPT THTVCF69 DUCT MINI VAV Ni1000-891 6" PROBE 9' CABLE CONDUIT ADPT THTVCF6D DUCT MINI VAV Ni1000-891 6" PROBE 12' CABLE CONDUIT ADPT THTVCK42 DUCT MINI VAV Ni1000-TC5 4" PROBE 2' CABLE CONDUIT ADPT THTVCK46 DUCT MINI VAV Ni1000-TC5 4" PROBE 6' CABLE CONDUIT ADPT THTVCK49 DUCT MINI VAV Ni1000-TC5 4" PROBE 9' CABLE CONDUIT ADPT THTVCK4D DUCT MINI VAV Ni1000-TC5 4" PROBE 12' CABLE CONDUIT ADPT THTVCK62 DUCT MINI VAV Ni1000-TC5 6" PROBE 2' CABLE CONDUIT ADPT THTVCK66 DUCT MINI VAV Ni1000-TC5 6" PROBE 6' CABLE CONDUIT ADPT THTVCK69 DUCT MINI VAV Ni1000-TC5 6" PROBE 9' CABLE CONDUIT ADPT THTVCK6D DUCT MINI VAV Ni1000-TC5 6" PROBE 12' CABLE CONDUIT ADPT

FEATURES

  • Durable NEMA 3S/IP 54 injection-molded enclosure with Quick Snap Cover

  • Available in 4” and 6" probe lengths

  • 2', 6', 9' or 12' plenum rated cable

  • AISI 316L stainless steel temperature probe

  • Small lightweight design

  • Quick Connect wire terminals eliminate wire nuts

  • Installed anti-vibration pad on flange

  • NTC thermistors or RTD elements available

  • Compatible with most Control Systems

  • Optional 1/2” NPT conduit adapter

  • CE & RoHS compliant

  • 5 Year Limited Warranty

  • Made in USA

BUY NOW
request a quote
DATASHEET

INSTRUCTIONS:

dUCT / IMMERSION INSTALLATION INSTRUCTIONS

DUCT FLANGE

OVERVIEW

Injection-molded plastic flange and stainless steel AISI 316L probe provides a low-cost solution for both commercial and industrial applications where a sensor enclosure is not required.

Available measuring elements interface with all major control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability.

The installed, high quality, closed cell foam ensures sealing of the probe insert and absorption of vibration. The Quick Connect terminals make installation easy and reduces labor costs.

A VAV version with plenum rated cable and connectors is available.

THTDFA04 DUCT FLANGE NTC 10K-2 4" THTDFA06 DUCT FLANGE NTC 10K-2 6" THTDFA08 DUCT FLANGE NTC 10K-2 8" THTDFA12 DUCT FLANGE NTC 10K-2 12" THTDFA18 DUCT FLANGE NTC 10K-2 18" THTDFB04 DUCT FLANGE NTC 10K-3 4" THTDFB06 DUCT FLANGE NTC 10K-3 6" THTDFB08 DUCT FLANGE NTC 10K-3 8" THTDFB12 DUCT FLANGE NTC 10K-3 12" THTDFB18 DUCT FLANGE NTC 10K-3 18" THTDFJ04 DUCT FLANGE NTC 10K-3 [11K] SHUNT 4" THTDFJ06 DUCT FLANGE NTC 10K-3 [11K] SHUNT 6" THTDFJ08 DUCT FLANGE NTC 10K-3 [11K] SHUNT 8" THTDFJ12 DUCT FLANGE NTC 10K-3 [11K] SHUNT 12" THTDFJ18 DUCT FLANGE NTC 10K-3 [11K] SHUNT 18" THTDFC04 DUCT FLANGE NTC 20K 4" THTDFC06 DUCT FLANGE NTC 20K 6" THTDFC08 DUCT FLANGE NTC 20K 8" THTDFC12 DUCT FLANGE NTC 20K 12" THTDFC18 DUCT FLANGE NTC 20K 18" THTDFG04 DUCT FLANGE NTC 10K-4 4" THTDFG06 DUCT FLANGE NTC 10K-4 6" THTDFG08 DUCT FLANGE NTC 10K-4 8" THTDFG12 DUCT FLANGE NTC 10K-4 12" THTDFG18 DUCT FLANGE NTC 10K-4 18" THTDFD04 DUCT FLANGE NTC 3K 4" THTDFD06 DUCT FLANGE NTC 3K 6" THTDFD08 DUCT FLANGE NTC 3K 8" THTDFD12 DUCT FLANGE NTC 3K 12" THTDFD18 DUCT FLANGE NTC 3K 18" THTDFH04 DUCT FLANGE Pt100 4" THTDFH06 DUCT FLANGE Pt100 6" THTDFH08 DUCT FLANGE Pt100 8" THTDFH12 DUCT FLANGE Pt100 12" THTDFH18 DUCT FLANGE Pt100 18" THTDFE04 DUCT FLANGE Pt1000 4" THTDFE06 DUCT FLANGE Pt1000 6" THTDFE08 DUCT FLANGE Pt1000 8" THTDFE12 DUCT FLANGE Pt1000 12" THTDFE18 DUCT FLANGE Pt1000 18" THTDFF04 DUCT FLANGE Ni1000-891 4" THTDFF06 DUCT FLANGE Ni1000-891 6" THTDFF08 DUCT FLANGE Ni1000-891 8" THTDFF12 DUCT FLANGE Ni1000-891 12" THTDFF18 DUCT FLANGE Ni1000-891 18" THTDFK04 DUCT FLANGE Ni1000-TC5 4" THTDFK06 DUCT FLANGE Ni1000-TC5 6" THTDFK08 DUCT FLANGE Ni1000-TC5 8" THTDFK12 DUCT FLANGE Ni1000-TC5 12" THTDFK18 DUCT FLANGE Ni1000-TC5 18"

FEATURES

  • Durable injection-molded plastic mounting flange

  • Available in 4” / 6” / 8” / 12” / 18” lengths

  • AISI 316L stainless steel temperature probe

  • Quick Connect wire terminals eliminate wire nuts

  • Installed anti-vibration pad on flange

  • VAV option with 6’, 9’ or 12’ plenum rated AWG 22 cable with ¼” connectors available

  • NTC thermistors and RTD elements available

  • Compatible with most Control Systems

  • CE & RoHS compliant

  • 5 Year Limited Warranty

  • Made in USA

BUY NOW
request a quote
Datasheet

INSTRUCTIONS:

dUCT / IMMERSION INSTALLATION INSTRUCTIONS

FLANGE VAV


OVERVIEW

Q-Duct Flange Sensor with 2', 6', 9' or 12' plenum rated VAV cable included.

Injection-molded plastic flange and stainless steel AISI 316L probe provides a low-cost solution for both commercial and industrial applications where a sensor enclosure is not required.

Available measuring elements interface with all major control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability.

The installed, high quality, closed cell foam ensures sealing of the probe insert and absorption of vibration. The Quick Connect wire terminals make install easy and reduces installation costs.

THTVFA42 DUCT FLANGE VAV 10K-2 4" PROBE 2' CABLE THTVFA46 DUCT FLANGE VAV 10K-2 4" PROBE 6' CABLE THTVFA49 DUCT FLANGE VAV 10K-2 4" PROBE 9' CABLE THTVFA4D DUCT FLANGE VAV 10K-2 4" PROBE 12' CABLE THTVFA62 DUCT FLANGE VAV 10K-2 6" PROBE 2' CABLE THTVFA66 DUCT FLANGE VAV 10K-2 6" PROBE 6' CABLE THTVFA69 DUCT FLANGE VAV 10K-2 6" PROBE 9' CABLE THTVFA6D DUCT FLANGE VAV 10K-2 6" PROBE 12' CABLE THTVFB42 DUCT FLANGE VAV 10K-3 4" PROBE 2'CABLE THTVFB46 DUCT FLANGE VAV 10K-3 4" PROBE 6' CABLE THTVFB49 DUCT FLANGE VAV 10K-3 4" PROBE 9' CABLE THTVFB4D DUCT FLANGE VAV 10K-3 4" PROBE 12' CABLE THTVFB62 DUCT FLANGE VAV 10K-3 6" PROBE 2'CABLE THTVFB66 DUCT FLANGE VAV 10K-3 6" PROBE 6' CABLE THTVFB69 DUCT FLANGE VAV 10K-3 6" PROBE 9' CABLE THTVFB6D DUCT FLANGE VAV 10K-3 6" PROBE 12' CABLE THTVFJ42 DUCT FLANGE VAV 10K-3 [11K] SHUNT 4" PROBE 2' CABLE THTVFJ46 DUCT FLANGE VAV 10K-3 [11K] SHUNT 4" PROBE 6' CABLE THTVFJ49 DUCT FLANGE VAV 10K-3 [11K] SHUNT 4" PROBE 9' CABLE THTVFJ4D DUCT FLANGE VAV 10K-3 [11K] SHUNT 4" PROBE 12' CABLE THTVFJ62 DUCT FLANGE VAV 10K-3 [11K] SHUNT 6" PROBE 2' CABLE THTVFJ66 DUCT FLANGE VAV 10K-3 [11K] SHUNT 6" PROBE 6' CABLE THTVFJ69 DUCT FLANGE VAV 10K-3 [11K] SHUNT 6" PROBE 9' CABLE THTVFJ6D DUCT FLANGE VAV 10K-3 [11K] SHUNT 6" PROBE 12' CABLE THTVFC42 DUCT FLANGE VAV 20K 4" PROBE 2' CABLE THTVFC46 DUCT FLANGE VAV 20K 4" PROBE 6' CABLE THTVFC49 DUCT FLANGE VAV 20K 4" PROBE 9' CABLE THTVFC4D DUCT FLANGE VAV 20K 4" PROBE 12' CABLE THTVFC62 DUCT FLANGE VAV 20K 6" PROBE 2' CABLE THTVFC66 DUCT FLANGE VAV 20K 6" PROBE 6' CABLE THTVFC69 DUCT FLANGE VAV 20K 6" PROBE 9' CABLE THTVFC6D DUCT FLANGE VAV 20K 6" PROBE 12' CABLE THTVFD42 DUCT FLANGE VAV 3K 4" PROBE 2' CABLE THTVFD46 DUCT FLANGE VAV 3K 4" PROBE 6' CABLE THTVFD49 DUCT FLANGE VAV 3K 4" PROBE 9' CABLE THTVFD4D DUCT FLANGE VAV 3K 4" PROBE 12' CABLE THTVFD62 DUCT FLANGE VAV 3K 6" PROBE 2' CABLE THTVFD66 DUCT FLANGE VAV 3K 6" PROBE 6' CABLE THTVFD69 DUCT FLANGE VAV 3K 6" PROBE 9' CABLE THTVFD6D DUCT FLANGE VAV 3K 6" PROBE 12' CABLE THTVFG42 DUCT FLANGE VAV 10K-4 4" PROBE 2' CABLE THTVFG46 DUCT FLANGE VAV 10K-4 4" PROBE 6' CABLE THTVFG49 DUCT FLANGE VAV 10K-4 4" PROBE 9' CABLE THTVFG4D DUCT FLANGE VAV 10K-4 4" PROBE 12' CABLE THTVFG62 DUCT FLANGE VAV 10K-4 6" PROBE 2' CABLE THTVFG66 DUCT FLANGE VAV 10K-4 6" PROBE 6' CABLE THTVFG69 DUCT FLANGE VAV 10K-4 6" PROBE 9' CABLE THTVFG6D DUCT FLANGE VAV 10K-4 6" PROBE 12' CABLE THTVFH42 DUCT FLANGE VAV Pt100 4" PROBE 2' CABLE THTVFH46 DUCT FLANGE VAV Pt100 4" PROBE 6' CABLE THTVFH49 DUCT FLANGE VAV Pt100 4" PROBE 9' CABLE THTVFH4D DUCT FLANGE VAV Pt100 4" PROBE 12' CABLE THTVFH62 DUCT FLANGE VAV Pt100 6" PROBE 2' CABLE THTVFH66 DUCT FLANGE VAV Pt100 6" PROBE 6' CABLE THTVFH69 DUCT FLANGE VAV Pt100 6" PROBE 9' CABLE THTVFH6D DUCT FLANGE VAV Pt100 6" PROBE 12' CABLE THTVFE42 DUCT FLANGE VAV Pt1000 4" PROBE 2' CABLE THTVFE46 DUCT FLANGE VAV Pt1000 4" PROBE 6' CABLE THTVFE49 DUCT FLANGE VAV Pt1000 4" PROBE 9' CABLE THTVFE4D DUCT FLANGE VAV Pt1000 4" PROBE 12' CABLE THTVFE62 DUCT FLANGE VAV Pt1000 6" PROBE 2' CABLE THTVFE66 DUCT FLANGE VAV Pt1000 6" PROBE 6' CABLE THTVFE69 DUCT FLANGE VAV Pt1000 6" PROBE 9' CABLE THTVFE6D DUCT FLANGE VAV Pt1000 6" PROBE 12' CABLE THTVFF42 DUCT FLANGE VAV Ni1000-891 4" PROBE 2' CABLE THTVFF46 DUCT FLANGE VAV Ni1000-891 4" PROBE 6' CABLE THTVFF49 DUCT FLANGE VAV Ni1000-891 4" PROBE 9' CABLE THTVFF4D DUCT FLANGE VAV Ni1000-891 4" PROBE 12' CABLE THTVFF62 DUCT FLANGE VAV Ni1000-891 6" PROBE 2' CABLE THTVFF66 DUCT FLANGE VAV Ni1000-891 6" PROBE 6' CABLE THTVFF69 DUCT FLANGE VAV Ni1000-891 6" PROBE 9' CABLE THTVFF6D DUCT FLANGE VAV Ni1000-891 6" PROBE 12' CABLE THTVFK42 DUCT FLANGE VAV Ni1000-TC5 4" PROBE 2' CABLE THTVFK46 DUCT FLANGE VAV Ni1000-TC5 4" PROBE 6' CABLE THTVFK49 DUCT FLANGE VAV Ni1000-TC5 4" PROBE 9' CABLE THTVFK4D DUCT FLANGE VAV Ni1000-TC5 4" PROBE 12' CABLE THTVFK62 DUCT FLANGE VAV Ni1000-TC5 6" PROBE 2' CABLE THTVFK66 DUCT FLANGE VAV Ni1000-TC5 6" PROBE 6' CABLE THTVFK69 DUCT FLANGE VAV Ni1000-TC5 6" PROBE 9' CABLE THTVFK6D DUCT FLANGE VAV Ni1000-TC5 6" PROBE 12' CABLE

FEATURES

  • Comes with 2', 6’, 9’ or 12' plenum rated AWG 22 cable

  • Durable injection-molded plastic mounting flange

  • Available in 4” and 6" probe length

  • AISI 316L stainless steel temperature probe

  • Quick Connect wire terminals eliminate wire nuts

  • Installed anti-vibration pad on flange

  • NTC thermistors and RTD elements available

  • Compatible with most Control Systems

  • CE & RoHS compliant

  • 5 Year Limited Warranty

  • Made in USA

BUY NOW
request a quote
DATASHEET

INSTRUCTIONS:

dUCT / IMMERSION INSTALLATION INSTRUCTIONS

DUCT SAFE

Q-DUCT SAFE OPEN_cropped.jpg

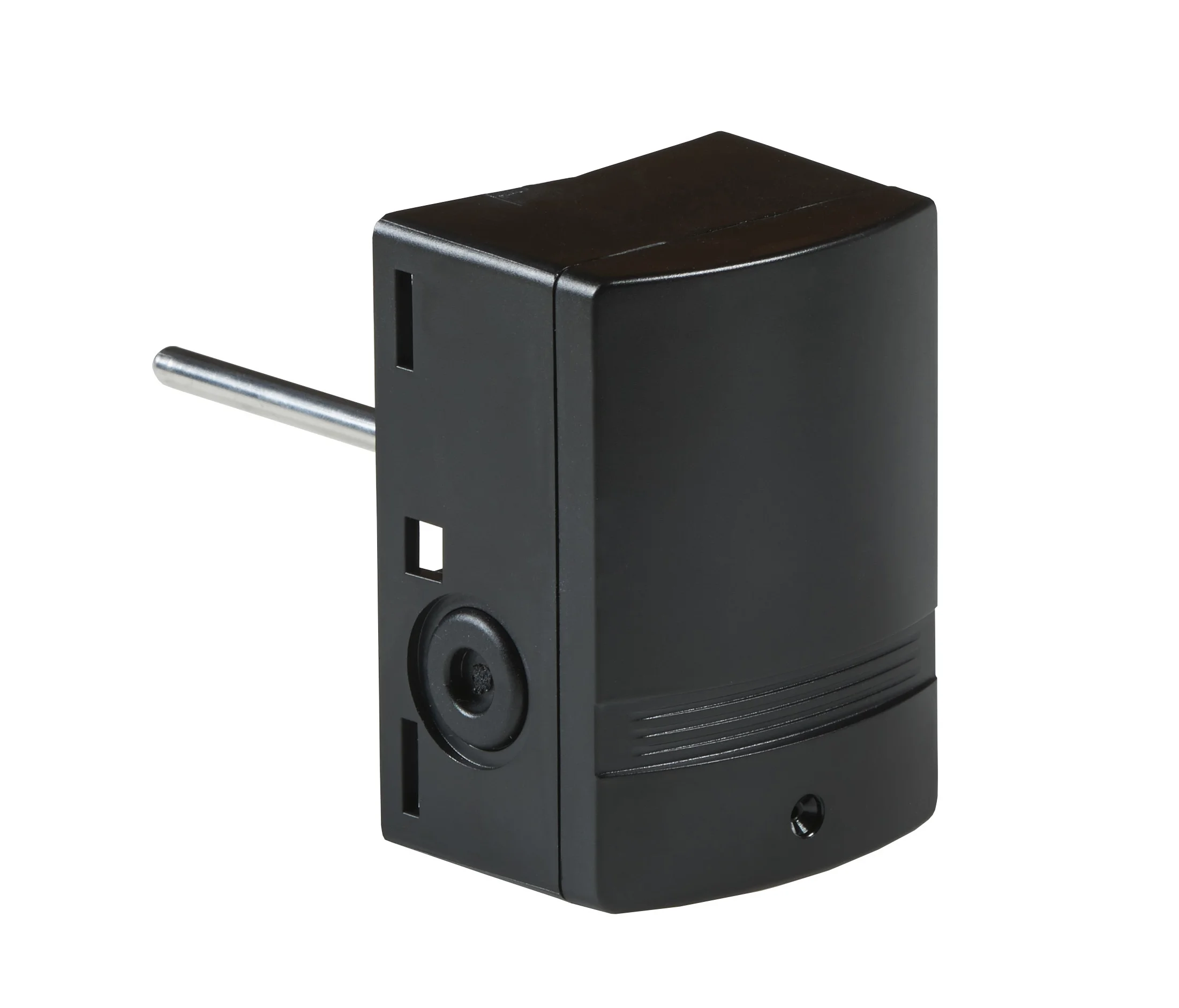

Q-DUCT SAFE_cropped.jpg

OVERVIEW

High quality universal Duct Temperature Sensor with weatherproof NEMA 4X injection-molded polycarbonate enclosure and stainless steel AISI 316 probe provides a cost effective solution for both commercial and industrial applications.

Available measuring elements interface with all major control manufacturers.  Accurate thermistors and RTDs ensure low drift and are double encapsulated to guarantee the highest reliability in the field.

The installed, high quality, closed cell foam ensures sealing of the probe insert and absorption of vibration.  Quick Hinge and Snap Cover with Quick Connect wire terminals make installs easy and reduce installation costs.

THTDSA04 DUCT SAFE NTC 10K-2 4" THTDSA06 DUCT SAFE NTC 10K-2 6" THTDSA08 DUCT SAFE NTC 10K-2 8" THTDSA12 DUCT SAFE NTC 10K-2 12" THTDSA18 DUCT SAFE NTC 10K-2 18" THTDSB04 DUCT SAFE NTC 10K-3 4" THTDSB06 DUCT SAFE NTC 10K-3 6" THTDSB08 DUCT SAFE NTC 10K-3 8" THTDSB12 DUCT SAFE NTC 10K-3 12" THTDSB18 DUCT SAFE NTC 10K-3 18" THTDSJ04 DUCT SAFE NTC 10K-3 [11K] SHUNT 4" THTDSJ06 DUCT SAFE NTC 10K-3 [11K] SHUNT 6" THTDSJ08 DUCT SAFE NTC 10K-3 [11K] SHUNT 8" THTDSJ12 DUCT SAFE NTC 10K-3 [11K] SHUNT 12" THTDSJ18 DUCT SAFE NTC 10K-3 [11K] SHUNT 18" THTDSC04 DUCT SAFE NTC 20K 4" THTDSC06 DUCT SAFE NTC 20K 6" THTDSC08 DUCT SAFE NTC 20K 8" THTDSC12 DUCT SAFE NTC 20K 12" THTDSC18 DUCT SAFE NTC 20K 18" THTDSD04 DUCT SAFE NTC 3K 4" THTDSD06 DUCT SAFE NTC 3K 6" THTDSD08 DUCT SAFE NTC 3K 8" THTDSD12 DUCT SAFE NTC 3K 12" THTDSD18 DUCT SAFE NTC 3K 18" THTDSG04 DUCT SAFE NTC 10K-4 4" THTDSG06 DUCT SAFE NTC 10K-4 6" THTDSG08 DUCT SAFE NTC 10K-4 8" THTDSG12 DUCT SAFE NTC 10K-4 12" THTDSG18 DUCT SAFE NTC 10K-4 18" THTDSH04 DUCT SAFE Pt100 4" THTDSH06 DUCT SAFE Pt100 6" THTDSH08 DUCT SAFE Pt100 8" THTDSH12 DUCT SAFE Pt100 12" THTDSH18 DUCT SAFE Pt100 18" THTDSE04 DUCT SAFE Pt1000 4" THTDSE06 DUCT SAFE Pt1000 6" THTDSE08 DUCT SAFE Pt1000 8" THTDSE12 DUCT SAFE Pt1000 12" THTDSE18 DUCT SAFE Pt1000 18" THTDSF04 DUCT SAFE Ni1000-891 4" THTDSF06 DUCT SAFE Ni1000-891 6" THTDSF08 DUCT SAFE Ni1000-891 8" THTDSF12 DUCT SAFE Ni1000-891 12" THTDSF18 DUCT SAFE Ni1000-891 18" THTDSK04 DUCT SAFE Ni1000-TC5 4" THTDSK06 DUCT SAFE Ni1000-TC5 6" THTDSK08 DUCT SAFE Ni1000-TC5 8" THTDSK12 DUCT SAFE Ni1000-TC5 12" THTDSK18 DUCT SAFE Ni1000-TC5 18"

FEATURES

  • Durable injection-molded NEMA 4X watertight enclosure

  • Available in 4” / 6” / 8” / 12” / 18” probe lengths

  • AISI 316 stainless steel temperature probe

  • Built in 1/2” NPT conduit connection on bottom

  • Optional 1/2” NPT conduit adapter on both sides

  • Quick Connect wire terminals eliminate wire nuts

  • Installed anti-vibration pad on mounting bracket

  • NTC thermistors or RTD elements available

  • Compatible with most Control Systems

  • CE & RoHS compliant

  • 5 year limited warranty

  • Made in the USA

BUY NOW
request a quote
DATASHEET

INSTRUCTIONS:

dUCT / IMMERSION INSTALLATION INSTRUCTIONS
