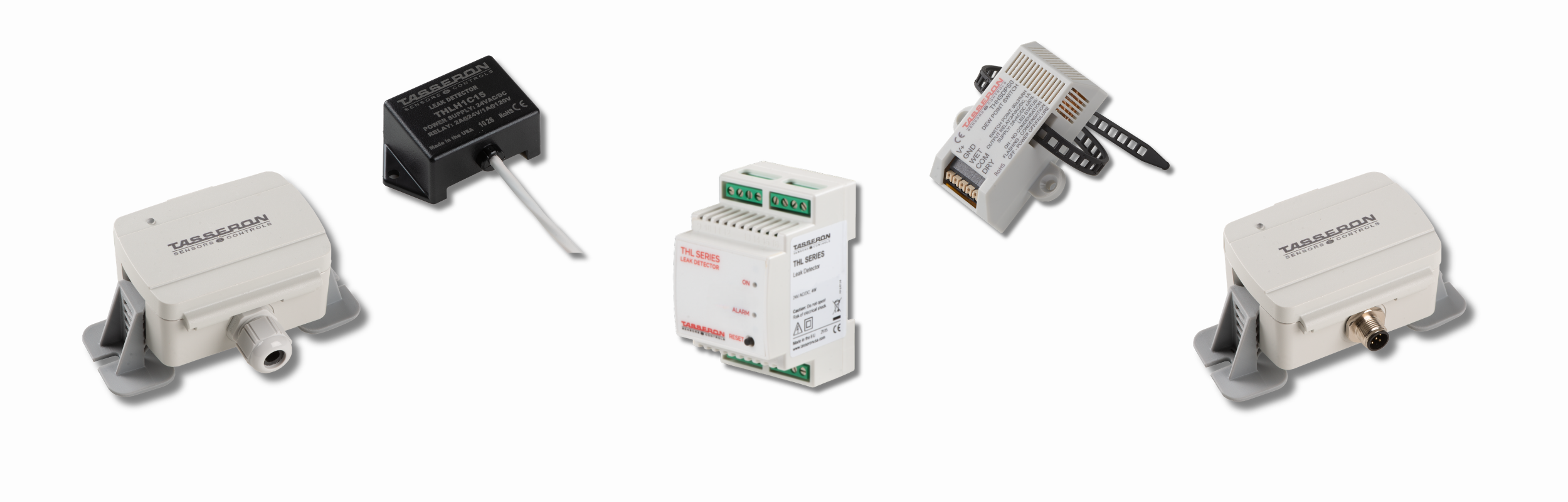

LEAK DETECTION
Innovating Leak Detection for Real-World Protection
At Tasseron Sensors & Controls, we bring over 100 years of experience together with modern sensing technology to deliver smart, dependable leak detection—designed for fast response and long-term reliability. Whether it’s condensate, leaks, or low water conditions, our solutions help prevent damage, reduce downtime, and protect critical equipment across HVAC and industrial applications.
TYPICAL APPLICATIONS (but not limited to):
Condensate Drain Pans
Pump Rooms / Boiler Rooms
Water Treatment Facilities
Commercial & Industrial Buildings
Data Centers
Mechanical Rooms
Chiller Plants
HVAC Equipment
EUro Spot leak detector
OVERVIEW
The Euro Spot Leak Detector senses conductive liquids and provides multiple field-selectable functions in a durable IP65/NEMA 4X enclosure with standard form C dry contact output, and Double Pole Dual Throw (DPDT) relay. It can be configured for leak or low-water detection with automatic or manual reset, LED indication, and optional audible alarm. Adjustable sensitivity and an onboard reset button allow flexible field use. The unit includes a cable gland strain relief, 1/2” NPT conduit adapter, and click-on legs to raise the sensing height up to 30 mm (1 3/16”). Ideal for condensate detection, leak pans, and low-water cutoff applications.
FEATURES
Double-Pole Dual-Throw Relay Outputs
Selectable Wet or Dry Functionality
Selectable Manual or Automatic Reset
Selectable Latch ON/OFF Relay
Selectable Local Audible Alarm
LED Alarm Status Indication
Ajustable Height from 1-30mm
CE & RoHS compliant
5-Year Limited Warranty
Made in the USA
INSTRUCTIONS:

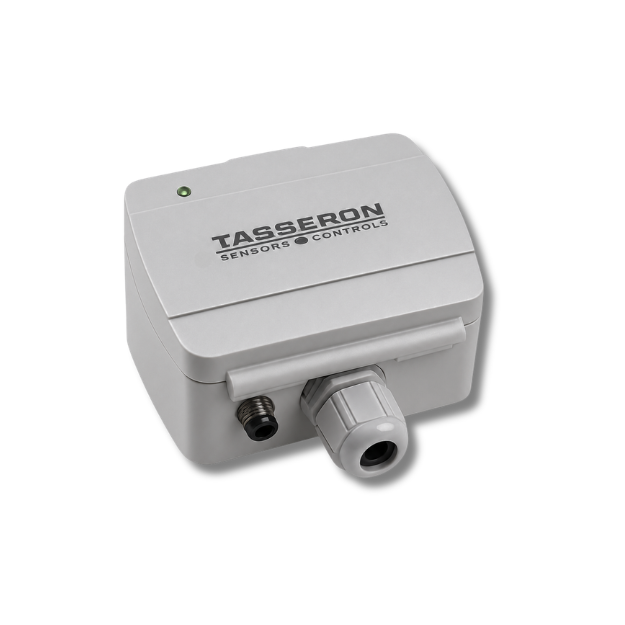

EUro remote leak detector
OVERVIEW

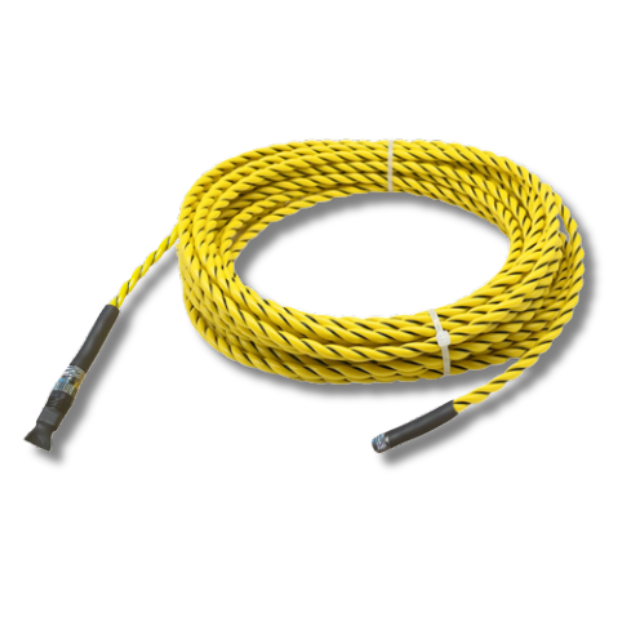

The Euro Remote Leak Detector is designed to sense the presence of conductive liquids. It provides for many field selectable options in one IP65/NEMA4X housing; with a dual relay output standard. Choose between functions of leak detection or low water detection, automatic or manual reset, LED indicator, or audible alarm. On-board reset button and sensitivity adjustment provide for numerous uses in the field. This remote measurement Euro Remote Leak Detector is additionally equipped with a cable gland strain relief and 1/2” NPT conduit adapter. Various remote sensing probes are available including Low water cutoff sensor (TSL-series), sensing rope, and remote spot sensor. Features 2 relays, one for sensing conductive fluids, and one for determining if there is trouble on the connected sensing device. Ideal for condensate detection, leak pans, and low-water cutoff applications.
FEATURES
Multiple remote sensing options available
Selectable manual or automatic reset
Selectable Latch ON/OFF Relay
Selectable Local Audible Alarm
LED Alarm Status Indication
Optional DIN rail mounting
CE & RoHS compliant
5-Year Limited Warranty
Made in the USA
INSTRUCTIONS:
din rail mount leak detector
OVERVIEW
The Tasseron DIN Rail Mount Leak Detector is a reliable solution for conductive liquid leak detection in commercial and industrial applications. Designed for easy DIN rail installation, it operates on 24V AC/DC power and offers selectable automatic or manual reset modes to suit a variety of system requirements. In manual reset mode, the alarm is repeated after 24 hours if the leak condition persists, providing an added level of protection. Two alarm relays remain energized during normal operation for enhanced system monitoring. CE compliant and backed by a 5-Year Limited Warranty, the DIN Rail Mount Leak Detector delivers dependable performance for critical leak detection applications.
FEATURES
Unique design
Supply voltage 24V AC/DC
Reset: auto or manual
Alarm repeated after 24 hours when manually reset
2 alarm relays (energized in no-alarm condition)
CE compliant
5 Year Limited Warranty
INSTRUCTIONS:

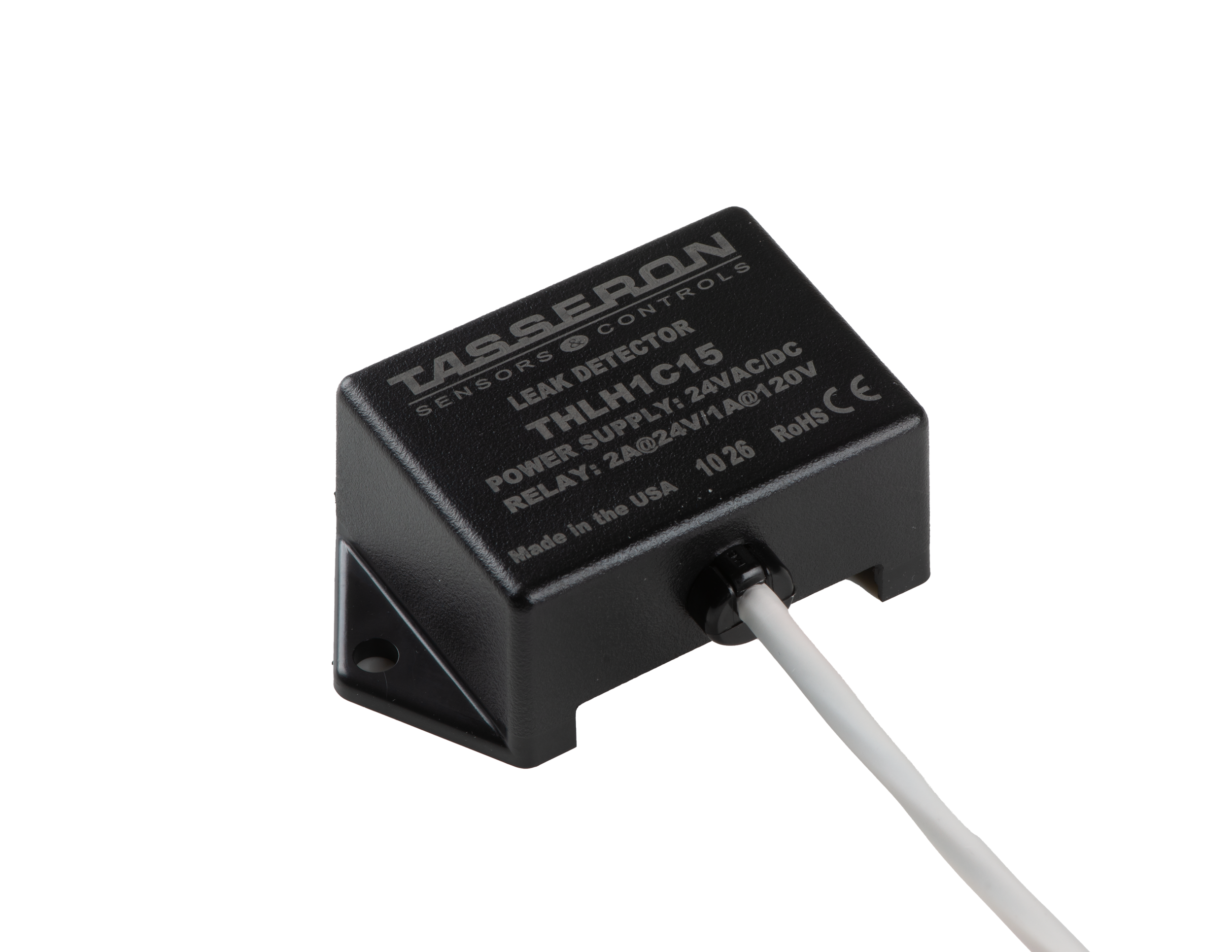

leak detector lite
OVERVIEW
The Tasseron Sensors & Controls Leak Detector Lite is a cost-effective solution for reliable conductive fluid leak detection. This leak detector has a small footprint for tight applications, and fully potted electronics for dust and moisture protection. Designed for dependable operation, it features automatic reset functionality, CE and RoHS compliance, and a 5-year limited warranty. The Lite leak detector includes a 15-foot, 5-conductor cable for flexible placement and easy integration into monitoring systems.
FEATURES
Cost effective solution
Fully potted electronics (NEMA 4X / IP65)
Standard 15 ft cable
Automatic reset
Height adjustable contacts
CE and RoHS compliant
5 Year Limited Warranty
Made in the USA
INSTRUCTIONS:

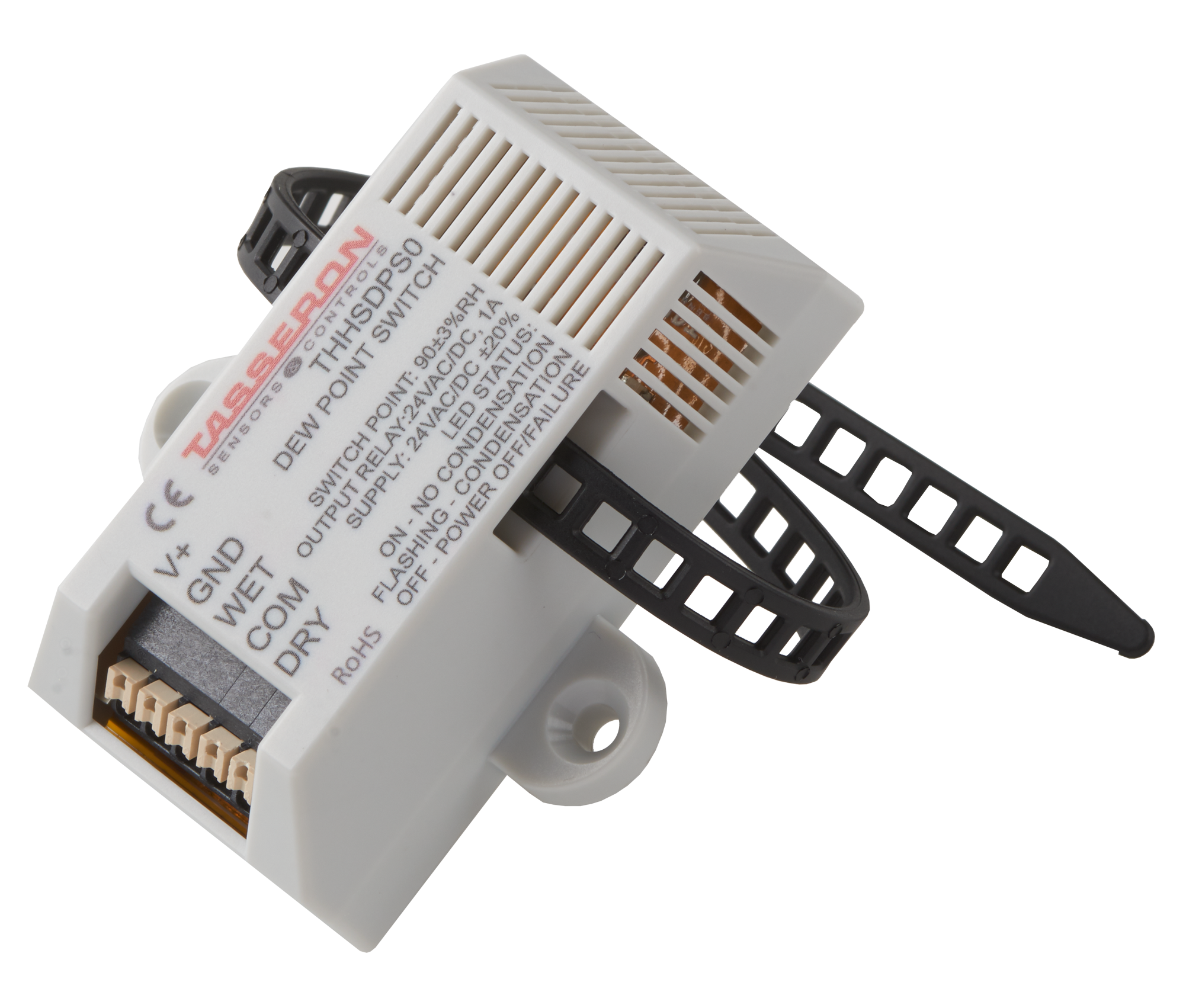

dew point switch
OVERVIEW
The Tasseron dew point switch sends early-warning signal before dew point is reached which can be used to control condensation in critical environments. This is achieved by a quick and accurate response in monitoring relative humidity in combination with temperature.
Status LED light indicates condensation warning as 90% threshold is reached, as well as potential electronic failure with the device.
The sturdy housing is well ventilated, coupled with a thermally conductive aluminum alloy contact surface contact making it suitable for a variety of applications. This product is designed for mounting directly on a pipe with a flexible strap included, or to a directly to a flat surface via the screw mounting holes.
FEATURES
Warns of dew point before it is reached
Compact and high-airflow design
Ability to be mounted on pipe with equipped strap or directly to flat surface
Coated electronics for dust and moisture protection
Status LED indicator
CE & RoHS compliant
5 year limited warranty
Made in the USA
