PRESSURE

Advancing Pressure Monitoring with Precision and Innovation

At Tasseron Sensors & Controls, we combine a century of expertise with cutting-edge sensor technology to deliver high-performance pressure sensing solutions—engineered for accuracy, reliability, and value.

Our pressure sensors are designed to meet the demands of today’s HVAC, industrial, and building automation systems. From differential pressure monitoring to maintaining optimal system performance, Tasseron sensors provide the dependable data you need to keep operations running smoothly.

Differential LOW pressure transmitter

w/ OPTIONAL din rail ADAPTER

OVERVIEW

The Tasseron Differential Low Pressure transmitters are designed for monitoring the differential pressure of air and other nonflammable and non-aggressive gases. Suitable applications include monitoring air filters, fans, industrial cooling air cycles, control of air and fire dampers.

The Tasseron transmitter is housed in the NEMA 4X / IP65 Euro enclosure. Key installation features include vertically orientated wiring and pressure connections, push button zero function, field selectable ranges and outputs and optional 35 mm DIN rail mounting adapter.

The Tasseron Pressure Sensor utilizes a high accuracy, piezoresistive, silicon sensing element which senses differential pressure and provides a linear 4-20 mA current or 0-10V DC voltage output equal to the selected pressure range. This technology reduces warmup shift while also reducing the effect of package stress for increased long-term stability.

  • High accuracy piezoresistive, silicon sensing element

  • Offered in 12 selectable Uni or Bidirectional ranges

  • Field selectable analog outputs 0-10V or 4-20mA

  • 2 selectable damping setting (3 sec) or slow (20 sec)

  • Auto-zero with onboard push button

  • Accepts 1/8”, 3/16” & 1/4” inner diameter hoses

  • Long term stability and low annual drift

  • AC or DC power supply accepted

  • Available with optional DIN mounting adapter

  • Quick Connect wire terminals for tool-free wiring

  • CE & RoHS compliant

  • 5 year limited warranty

  • Made in the USA

FEATURES

BUY NOW
BUY NOW
Request a quote
Request a quote
DATASHEET
DATASHEET
sell sheet
sell sheet

INSTRUCTIONS:

DIFFERENTIAL LOW PRESSURE SENSOR INSTALLATION INSTRUCTIONS

Differential high pressure transmitter

w/ OPTIONAL din rail ADAPTER

The Tasseron Differential High Pressure transmitters are designed for monitoring the differential pressure of air and other nonflammable and non-aggressive gases. Suitable applications include monitoring air filters, fans, industrial cooling air cycles, control of air and fire dampers.

The Tasseron transmitter is housed in the NEMA 4X / IP65 Euro enclosure. Key installation features include vertically orientated wiring and pressure connections, push button zero function, field selectable ranges and outputs and optional 35 mm DIN rail mounting adapter.

The Tasseron Pressure Sensor utilizes a high accuracy, piezo-resistive, silicon sensing element which senses differential pressure and provides a linear 4-20 mA current or 0-10V DC voltage output equal to the selected pressure range. This technology reduces warmup shift while also reducing the effect of package stress for increased long-term stability.

OVERVIEW

  • High accuracy piezoresistive, silicon sensing element

  • NEMA 4X / IP65 enclosure with optional DIN rail mount adapter

  • Offered in 8 selectable Unidirectional ranges

  • Field selectable analog outputs 0-10V or 4-20mA

  • 2 selectable damping setting (3 sec) or slow (20 sec)

  • Auto-zero with onboard push button

  • Accepts 1/8”, 3/16” & 1/4” I.D. hoses

  • Long term stability and low annual drift

  • AC or DC power supply accepted

  • Available with optional DIN mounting adapter

  • Quick Connect wire terminals for tool-free wiring

  • CE & RoHS compliant

  • 5 year limited warranty

  • Made in the USA

FEATURES

BUY NOW
BUY NOW
Request a quote
Request a quote
DATASHEET
DATASHEET
sell sheet
sell sheet

INSTRUCTIONS:

DIFFERENTIAL HIGH PRESSURE SENSOR INSTALLATION INSTRUCTIONS

PRESSURE PICK UP PORT (ppup)

ROOM & WALL MOUNT

Wall and room-mounted pickup ports are designed to work seamlessly with low differential pressure transmitters, offering a clean, aesthetically pleasing static pressure reference point.

These ports enhance accuracy and reliability, making them ideal for precise monitoring applications. For optimal performance, ensure tubing is free from dirt, dust, and condensation, and keep the tubing run as short as possible to maintain fast response times.

OVERVIEW

FEATURES:

  • Wall plates available in stainless steel 304, powder-coated steel, or Room Aero with injection-molded ABS plastic enclosure universal fitting made from turned brass

  • Supports 1/8”, 3/16” & 1/4” I.D. push-on flexible silicone tubing

  • Filter with max pressure of 150 psi (10.3 bar)

  • Neoprene foam for insulation

  • Filter cap material is PC/ABS blend

  • REACH & RoHS compliant

  • 5 year limited warranty

  • Made in the USA

BUY NOW
BUY NOW
REQUEST A QUOTE
REQUEST A QUOTE
DATASHEET
DATASHEET

PRESSURE PICK UP PORT (ppup)

OUTDOOR

The Tasseron outdoor pickup ports are designed to work seamlessly with low differential pressure transmitters, offering a clean, aesthetically pleasing static pressure reference point.

These ports enhance accuracy and reliability, making them ideal for precise monitoring applications. For optimal performance, ensure tubing is free from dirt, dust, and condensation, and keep the tubing run as short as possible to maintain fast response times.

OVERVIEW

PRESSURE PICK UP PORT (ppup)

DUCT MOUNT

  • Durable NEMA 4X/IP66 injection-molded watertight enclosure

  • Hinged removable snap cover

  • Universal fitting made from turned brass

  • Supports 1/8”, 3/16” & 1/4” I.D. push-on flexible silicone tubing

  • Filter with max pressure of 150 psi (10.3 bar)

  • Neoprene foam for insulation

  • Filter cap material is PC/ABS blend

  • REACH & RoHS compliant

  • 5 year limited warranty

  • Made in the USA

FEATURES:

BUY NOW
BUY NOW
REQUEST A QUOTE
REQUEST A QUOTE
DATASHEET
DATASHEET

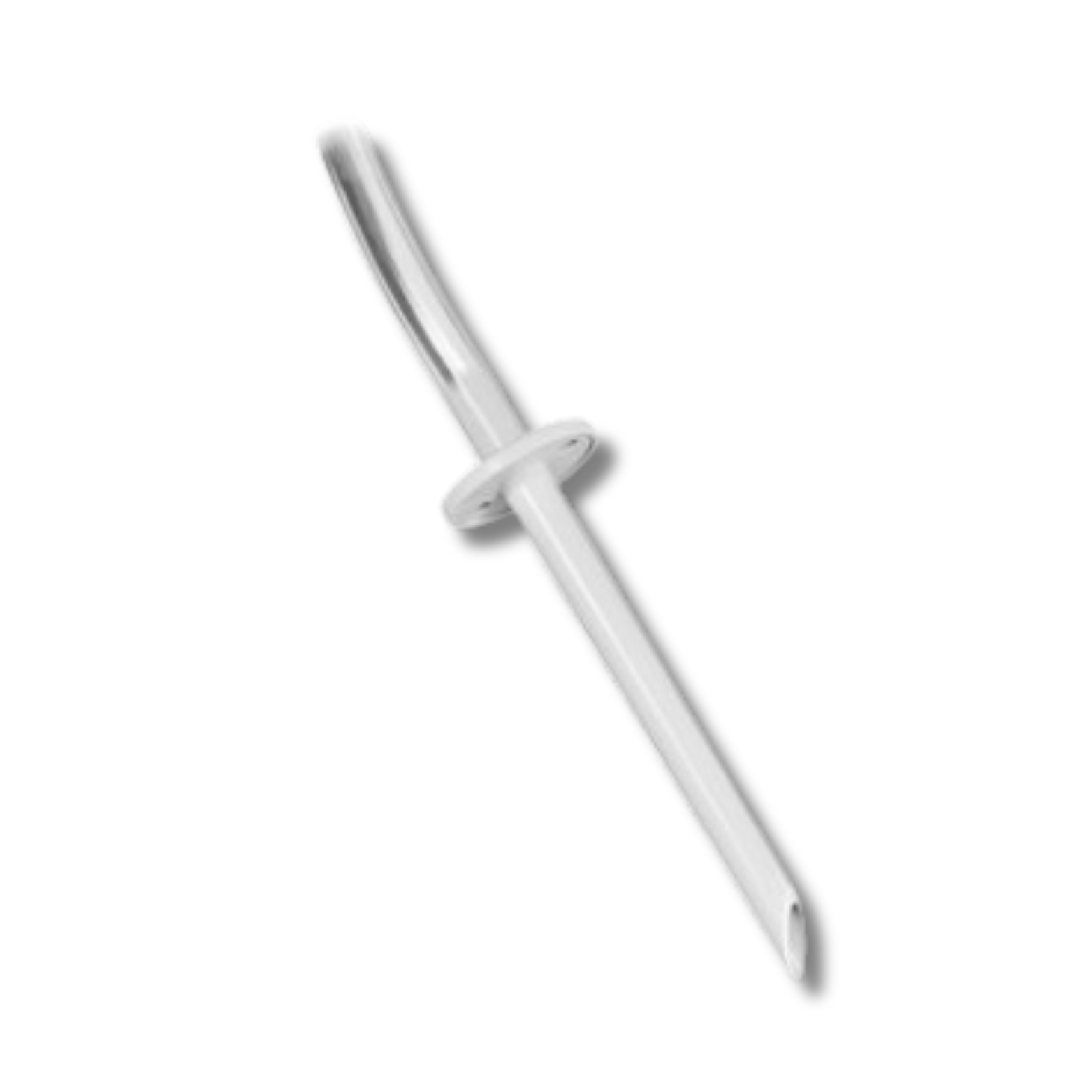

Duct mounted pickup ports are designed to work seamlessly with low differential pressure transmitters, offering a clean, aesthetically pleasing static pressure reference point.

These ports enhance accuracy and reliability, making them ideal for precise monitoring applications. For optimal performance, ensure tubing is free from dirt, dust, and condensation, and keep the tubing run as short as possible to maintain fast response times.

OVERVIEW

FEATURES:

THPE0A0C DIFFERENTIAL PRESSURE EURO 0.1" WC (0..25Pa) 0-10V THPE0B0C DIFFERENTIAL PRESSURE EURO 0.2" WC (0..50Pa) 0-10V THPE0C0C DIFFERENTIAL PRESSURE EURO 0.4" WC (0..100Pa) 0-10V THPE0D0C DIFFERENTIAL PRESSURE EURO 0.5" WC (0..125Pa) 0-10V THPE0E0C DIFFERENTIAL PRESSURE EURO 1.0" WC (0..250Pa) 0-10V THPE0F0C DIFFERENTIAL PRESSURE EURO 2.0" WC (0..500Pa) 0-10V THPE0G0C DIFFERENTIAL PRESSURE EURO 5.0" WC (0..1250Pa) 0-10V THPE0H0C DIFFERENTIAL PRESSURE EURO 10.0" WC (0..2500Pa) 0-10V THPE0I0C DIFFERENTIAL PRESSURE EURO ±0.1" WC (±25Pa) 0-10V THPE0J0C DIFFERENTIAL PRESSURE EURO ±0.2" WC (±50Pa) 0-10V THPE0K0C DIFFERENTIAL PRESSURE EURO ±0.5" WC (±125Pa) 0-10V THPE0L0C DIFFERENTIAL PRESSURE EURO ±1.0" WC (±250Pa) 0-10V THPE0A1C DIFFERENTIAL PRESSURE EURO 0.1" WC (0..25Pa) DIN RAIL CLIP 0-10V THPE0B1C DIFFERENTIAL PRESSURE EURO 0.2" WC (0..50Pa) DIN RAIL CLIP 0-10V THPE1C1C DIFFERENTIAL PRESSURE EURO 0.4" WC (0..100Pa) DIN RAIL CLIP 0-10V THPE0D1C DIFFERENTIAL PRESSURE EURO 0.5" WC (0..125Pa) DIN RAIL CLIP 0-10V THPE0E1C DIFFERENTIAL PRESSURE EURO 1.0" WC (0..250Pa) DIN RAIL CLIP 0-10V THPE0F1C DIFFERENTIAL PRESSURE EURO 2.0" WC (0..500Pa) DIN RAIL CLIP 0-10V THPE0G1C DIFFERENTIAL PRESSURE EURO 5.0" WC (0..1250Pa) DIN RAIL CLIP 0-10V THPE0H1C DIFFERENTIAL PRESSURE EURO 10.0" WC (0..2500Pa) DIN RAIL CLIP 0-10V THPE0I1C DIFFERENTIAL PRESSURE EURO ±0.1" WC (±25Pa) DIN RAIL CLIP 0-10V THPE0J1C DIFFERENTIAL PRESSURE EURO ±0.2" WC (±50Pa) DIN RAIL CLIP 0-10V THPE0K1C DIFFERENTIAL PRESSURE EURO ±0.5" WC (±125Pa) DIN RAIL CLIP 0-10V THPE0L1C DIFFERENTIAL PRESSURE EURO ±1.0" WC (±250Pa) DIN RAIL CLIP 0-10V THPE0A0G DIFFERENTIAL PRESSURE EURO 0.1" WC (0..25Pa) 4-20mA 3-wire THPE0B0G DIFFERENTIAL PRESSURE EURO 0.2" WC (0..50Pa) 4-20mA 3-wire THPE0G0G DIFFERENTIAL PRESSURE EURO 0.4" WC (0..100Pa) 4-20mA 3-wire THPE0D0G DIFFERENTIAL PRESSURE EURO 0.5" WC (0..125Pa) 4-20mA 3-wire THPE0E0G DIFFERENTIAL PRESSURE EURO 1.0" WC (0..250Pa) 4-20mA 3-wire THPE0F0G DIFFERENTIAL PRESSURE EURO 2.0" WC (0..500Pa) 4-20mA 3-wire THPE0G0G DIFFERENTIAL PRESSURE EURO 5.0" WC (0..1250Pa) 4-20mA 3-wire THPE0H0G DIFFERENTIAL PRESSURE EURO 10.0" WC (0..2500Pa) 4-20mA 3-wire THPE0I0G DIFFERENTIAL PRESSURE EURO ±0.1" WC (±25Pa) 4-20mA 3-wire THPE0J0G DIFFERENTIAL PRESSURE EURO ±0.2" WC (±50Pa) 4-20mA 3-wire THPE0K0G DIFFERENTIAL PRESSURE EURO ±0.5" WC (±125Pa) 4-20mA 3-wire THPE0L0G DIFFERENTIAL PRESSURE EURO ±1.0" WC (±250Pa) 4-20mA 3-wire THPE0A1G DIFFERENTIAL PRESSURE EURO 0.1" WC (0..25Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0B1G DIFFERENTIAL PRESSURE EURO 0.2" WC (0..50Pa) DIN RAIL CLIP 4-20mA 3-wire THPE1G1G DIFFERENTIAL PRESSURE EURO 0.4" WC (0..100Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0D1G DIFFERENTIAL PRESSURE EURO 0.5" WC (0..125Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0E1G DIFFERENTIAL PRESSURE EURO 1.0" WC (0..250Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0F1G DIFFERENTIAL PRESSURE EURO 2.0" WC (0..500Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0G1G DIFFERENTIAL PRESSURE EURO 5.0" WC (0..1250Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0H1G DIFFERENTIAL PRESSURE EURO 10.0" WC (0..2500Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0I1G DIFFERENTIAL PRESSURE EURO ±0.1" WC (±25Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0J1G DIFFERENTIAL PRESSURE EURO ±0.2" WC (±50Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0K1G DIFFERENTIAL PRESSURE EURO ±0.5" WC (±125Pa) DIN RAIL CLIP 4-20mA 3-wire THPE0L1G DIFFERENTIAL PRESSURE EURO ±1.0" WC (±250Pa) DIN RAIL CLIP 4-20mA 3-wire THPE000C DIFFERENTIAL HIGH PRESSURE EURO 0..5” WC (0..1250 Pa) 0-10V THPE010C DIFFERENTIAL HIGH PRESSURE EURO 0..10” WC (0..2500 Pa) 0-10V THPE020C DIFFERENTIAL HIGH PRESSURE EURO 0..15” WC (0..3750 Pa) 0-10V THPE030C DIFFERENTIAL HIGH PRESSURE EURO 0..20” WC (0..5000 Pa) 0-10V THPE040C DIFFERENTIAL HIGH PRESSURE EURO 0..25” WC (0..6250 Pa) 0-10V THPE050C DIFFERENTIAL HIGH PRESSURE EURO 0..30” WC (0..7500 Pa) 0-10V THPE060C DIFFERENTIAL HIGH PRESSURE EURO 0..35” WC (0..8750 Pa) 0-10V THPE070C DIFFERENTIAL HIGH PRESSURE EURO 0..38” WC (0..9500 Pa) 0-10V THPE001C DIFFERENTIAL HIGH PRESSURE EURO 0..5” WC (0..1250 Pa) DIN RAIL CLIP 0-10V THPE011C DIFFERENTIAL HIGH PRESSURE EURO 0..10” WC (0..2500 Pa) DIN RAIL CLIP 0-10V THPE021C DIFFERENTIAL HIGH PRESSURE EURO 0..15” WC (0..3750 Pa) DIN RAIL CLIP 0-10V THPE031C DIFFERENTIAL HIGH PRESSURE EURO 0..20” WC (0..5000 Pa) DIN RAIL CLIP 0-10V THPE041C DIFFERENTIAL HIGH PRESSURE EURO 0..25” WC (0..6250 Pa) DIN RAIL CLIP 0-10V THPE051C DIFFERENTIAL HIGH PRESSURE EURO 0..30” WC (0..7500 Pa) DIN RAIL CLIP 0-10V THPE061C DIFFERENTIAL HIGH PRESSURE EURO 0..35” WC (0..8750 Pa) DIN RAIL CLIP 0-10V THPE071C DIFFERENTIAL HIGH PRESSURE EURO 0..38” WC (0..9500 Pa) DIN RAIL CLIP 0-10V THPE000G DIFFERENTIAL HIGH PRESSURE EURO 0..5” WC (0..1250 Pa) 4-20mA 3-wire THPE010G DIFFERENTIAL HIGH PRESSURE EURO 0..10” WC (0..2500 Pa) 4-20mA 3-wire THPE020G DIFFERENTIAL HIGH PRESSURE EURO 0..15” WC (0..3750 Pa) 4-20mA 3-wire THPE030G DIFFERENTIAL HIGH PRESSURE EURO 0..20” WC (0..5000 Pa) 4-20mA 3-wire THPE040G DIFFERENTIAL HIGH PRESSURE EURO 0..25” WC (0..6250 Pa) 4-20mA 3-wire THPE050G DIFFERENTIAL HIGH PRESSURE EURO 0..30” WC (0..7500 Pa) 4-20mA 3-wire THPE060G DIFFERENTIAL HIGH PRESSURE EURO 0..35” WC (0..8750 Pa) 4-20mA 3-wire THPE070G DIFFERENTIAL HIGH PRESSURE EURO 0..38” WC (0..9500 Pa) 4-20mA 3-wire THPE001G DIFFERENTIAL HIGH PRESSURE EURO 0..5” WC (0..1250 Pa) DIN RAIL CLIP 4-20mA 3-wire THPE011G DIFFERENTIAL HIGH PRESSURE EURO 0..10” WC (0..2500 Pa) DIN RAIL CLIP 4-20mA 3-wire THPE021G DIFFERENTIAL HIGH PRESSURE EURO 0..15” WC (0..3750 Pa) DIN RAIL CLIP 4-20mA 3-wire THPE031G DIFFERENTIAL HIGH PRESSURE EURO 0..20” WC (0..5000 Pa) DIN RAIL CLIP 4-20mA 3-wire THPE041G DIFFERENTIAL HIGH PRESSURE EURO 0..25” WC (0..6250 Pa) DIN RAIL CLIP 4-20mA 3-wire THPE051G DIFFERENTIAL HIGH PRESSURE EURO 0..30” WC (0..7500 Pa) DIN RAIL CLIP 4-20mA 3-wire THPE061G DIFFERENTIAL HIGH PRESSURE EURO 0..35” WC (0..8750 Pa) DIN RAIL CLIP 4-20mA 3-wire THPE071G DIFFERENTIAL HIGH PRESSURE EURO 0..38” WC (0..9500 Pa) DIN RAIL CLIP 4-20mA 3-wire THXPPDF3 PRESSURE PICK-UP DUCT FLANGE MULTI-BARB 3" THXPPDF8 PRESSURE PICK-UP DUCT FLANGE MULTI-BARB 8" THXPPRWS PRESSURE PICK-UP WALL PLATE SS THXPPRWW PRESSURE PICK-UP WALL PLATE WHITE THXPPRA0 PRESSURE PICK-UP ROOM AERO PLASTIC THXPPOE0 PRESSURE PICK-UP OUTDOOR EURO NEMA 4X

  • Durable injection-molded plastic flange

  • 3” and 8” probe lengths available

  • Universal fitting made from turned brass

  • Supports 1/8”, 3/16” & 1/4” I.D. push-on flexible silicone tubing

  • Filter with max pressure of 150 psi (10.3 bar)

  • Neoprene foam for insulation

  • Filter cap material is PC/ABS blend

  • REACH & RoHS compliant

  • 5 year limited warranty

  • Made in the USA
