OUTDOOR TEMPERATURE SENSORS
TYPICAL APPLICATIONS (but not limited to):
Outdoor air monitoring
Economizer control
Boiler reset control
BAS weather compensation
Freeze protection
HVAC system changeover control
OUTDOOR EURO
OVERVIEW
The Tasseron Euro Series Outdoor Temperature Sensor provides a high quality solution for both commercial and industrial applications. The Euro housing offers weatherproof NEMA 4X/IP 66 ratings and is produced with UV resistive injection-molded plastic.
The available measuring elements interface with most major control manufacturers. Accurate thermistors and RTDs ensure low drift and are double encapsulated to guarantee the highest reliability in the field. The Hinged Snap Cover and Quick Connect wire terminals make installation easy and reduces installation costs.
The Euro Series is also available with multiple temperature transmitter ranges with 4-20mA analog output.
FEATURES
Durable NEMA 4X injection-molded watertight enclosure
Quick Connect wire terminals eliminate wire nuts
NTC thermistors or RTD elements available
Built in 1/2” NPT conduit connection on bottom
Weather tight side grommets knock-outs
Compatible with most control systems
CE & RoHS compliant
5 year limited warranty
Made in the USA
INSTRUCTIONS:

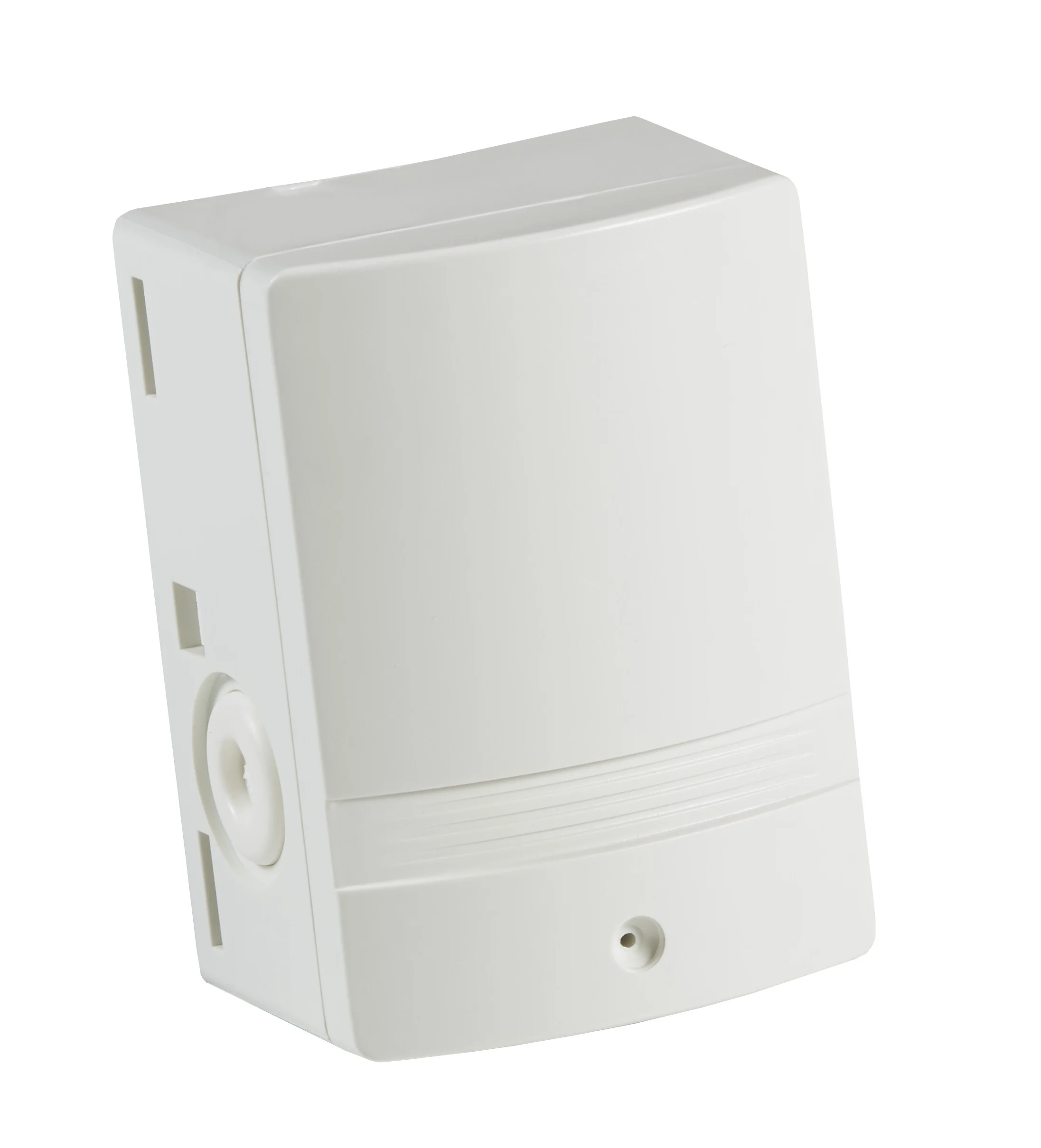

OUTDOOR SAFE
OVERVIEW
The Tasseron Outdoor Safe Box is a high quality outdoor air temperature sensor in a watertight, NEMA 4X plastic enclosure.
Available measuring elements interface with most major control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability.
The internally hinged cover and snap-in mounting flange on the back allows for fast temperature response while making installation easy.
FEATURES
Durable NEMA 4X/IP66 injection-molded watertight enclosure
Hinged removable snap cover
Quick Connect wire terminals eliminate wire nuts
NTC thermistors, RTD elements or 4-20mA transmitters available
1/2” NPT conduit adapter and cable gland included
Compatible with most control systems
CE & RoHS compliant
5 year limited warranty
Made in the USA
INSTRUCTIONS:
OUTDOOR MINI
OVERVIEW
The Tasseron Outdoor Mini is a small, high quality outdoor air temperature sensor in an IP54, modern plastic enclosure. The Outdoor Mini provides a cost-effective solution for both commercial and industrial applications.
Available measuring elements interface with most major control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability.
The Quick Snap Cover, one screw installation and Quick Connect wire terminals make installation easy and reduce installation costs.
FEATURES
Durable IP54 injection-molded enclosure with Quick Snap Cover
Small, compact design
Easy one screw mounting
Quick Connect wire terminals eliminate wire nuts
NTC thermistors and RTD elements available
Compatible with most major control systems
Optional 1/2” NPT conduit adapter
CE & RoHS compliant
5 Year Limited Warranty
Assembled in USA
